  • Series T31 Programmable Resistance Temperature Detector (RTD) Transmitters
  • Series T31 Programmable Resistance Temperature Detector (RTD) Transmitters - 2

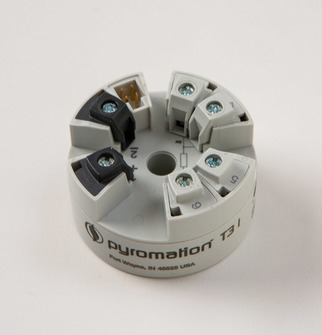

The T31 programmable RTD temperature transmitter is a two-wire transmitter with an analog output. It has measurement input for Pt100 resistance thermometers (RTDs) in 2-, 3- or 4-wire connections. Setting up of the transmitter is done using the communication cable. CSA certified for use in specified Hazardous Locations. These small units can be mounted in Pyromation connection heads or they can be used for surface mounting using a 35 mm DIN rail mounting clip.
1 - 1 of 1 | Results Per Page | View | Unit of Measure
1
Request Information

Item #

Configuration Code

Sensor Input

Range

Unit of Measure

Accessories

N/A TM01 N/A Code 85 - 100 Ohm Platinum (α = 0.003 85 ºC-1) Code 92 - 100 Ohm Platinum (α = 0.003 92 ºC-1) Code 95 - 1000 Ohm Platinum (α = 0.003 85 ºC-1) N/A Code S (Lower Limit - Upper Limit) N/A Code C - Celsius Code F - Fahrenheit N/A Code 10303 - Communication Cable Code 10307 - 35 mm Din-rail Mounting Clip
