  • SP07 Thermostat Temperature Sensors
  • SP07 Thermostat Temperature Sensors - 2

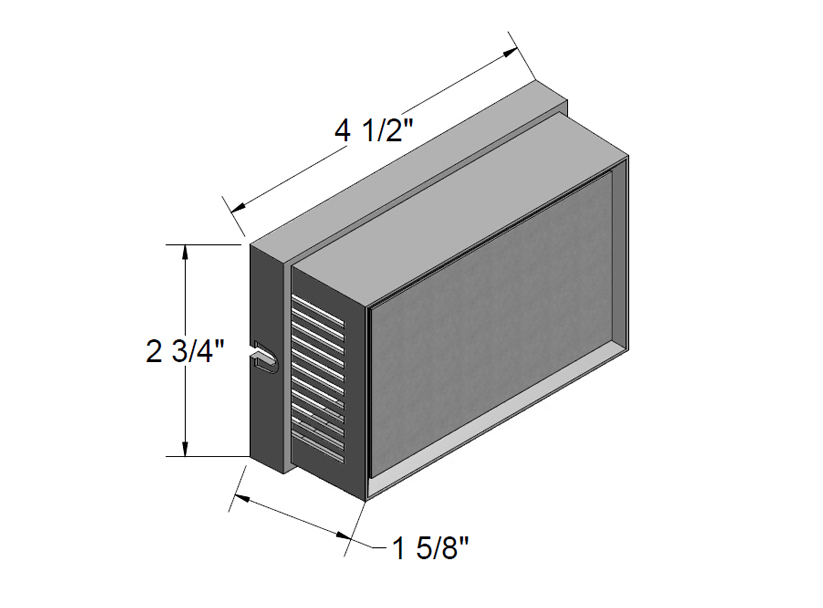

The Pyromation thermostat temperature sensors are provided with the sensor, or the sensor and a (4 to 20) mA temperature transmitter, mounted on a sub plate within a standard size thermostat housing. The thermostat housing measures 2-3/4" h x 4-1/2" w x 1-5/8" d and can be mounted either horizontally or vertically on a 2" x 4" electrical hand box. The cover is vented on two sides to provide for airflow over the sensing element, regardless of mounting position. The standard temperature sensing elements are available as a fluoropolymer insulated thermocouple or a three-wire Resistance Temperature Detector (RTD). Matching transmitters are available for all configurations and output ranges.
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Brands

Thermostat Housings

Options

Temperature Range

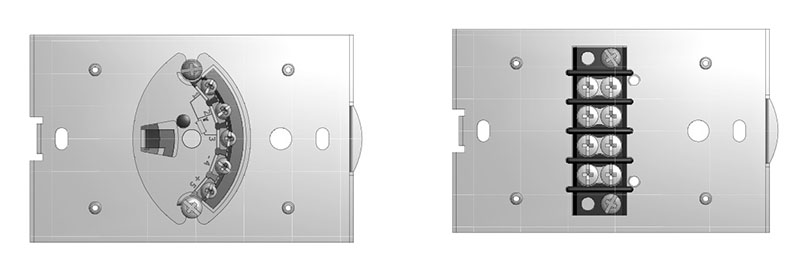

N/A SP07 2-3/4 Inch (in) Thermostat Housing Height Temperature Sensor N/A Pyromation® N/A Thermostat housing with integral 100 O platinum RTD 0.00385 0ºC-1 temperature coefficient Class B N/A (4-20) mA Resistance Temperature Detector (RTD) transmitter mounted in housing with sensor N/A -40 to 85 ºC
N/A SP07 2-3/4 Inch (in) Thermostat Housing Height Temperature Sensor N/A Pyromation® N/A Thermostat housing with integral 100 O platinum RTD 0.00385 0ºC-1 temperature coefficient Class B N/A 4-20 mA Isolated transmitter mounted in housing with sensor N/A -40 to 85 ºC
N/A SP07 2-3/4 Inch (in) Thermostat Housing Height Temperature Sensor N/A Pyromation® N/A Thermostat housing with integral 100 O platinum RTD 0.00385 0ºC-1 temperature coefficient Class B N/A (4 to 20) mA Isolated HART® head-mounted transmitter N/A -40 to 85 ºC
N/A SP07 2-3/4 Inch (in) Thermostat Housing Height Temperature Sensor N/A Pyromation® N/A Thermostat housing with integral thermocouple element N/A (4-20) mA Resistance Temperature Detector (RTD) transmitter mounted in housing with sensor N/A -40 to 85 ºC
N/A SP07 2-3/4 Inch (in) Thermostat Housing Height Temperature Sensor N/A Pyromation® N/A Thermostat housing with integral thermocouple element N/A 4-20 mA Isolated transmitter mounted in housing with sensor N/A -40 to 85 ºC
N/A SP07 2-3/4 Inch (in) Thermostat Housing Height Temperature Sensor N/A Pyromation® N/A Thermostat housing with integral thermocouple element N/A (4 to 20) mA Isolated HART® head-mounted transmitter N/A -40 to 85 ºC
N/A SP07 2-3/4 Inch (in) Thermostat Housing Height Temperature Sensor N/A Pyromation® N/A Thermostat housing with base plate and 4-position terminal strip - no sensing element N/A 4-20 mA Resistance Temperature Detector (RTD) transmitter mounted in housing with sensor N/A -40 to 85 ºC
N/A SP07 2-3/4 Inch (in) Thermostat Housing Height Temperature Sensor N/A Pyromation® N/A Thermostat housing with base plate and 4-position terminal strip - no sensing element N/A 4-20 mA Isolated transmitter mounted in housing with sensor N/A -40 to 85 ºC
N/A SP07 2-3/4 Inch (in) Thermostat Housing Height Temperature Sensor N/A Pyromation® N/A Thermostat housing with base plate and 4-position terminal strip - no sensing element N/A 4 to 20) mA Isolated HART® head-mounted transmitter N/A -40 to 85 ºC
