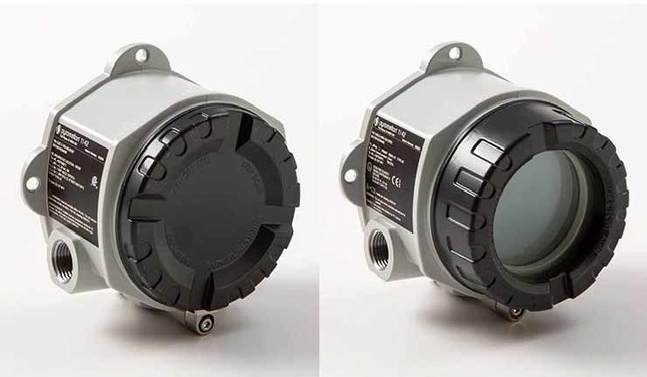

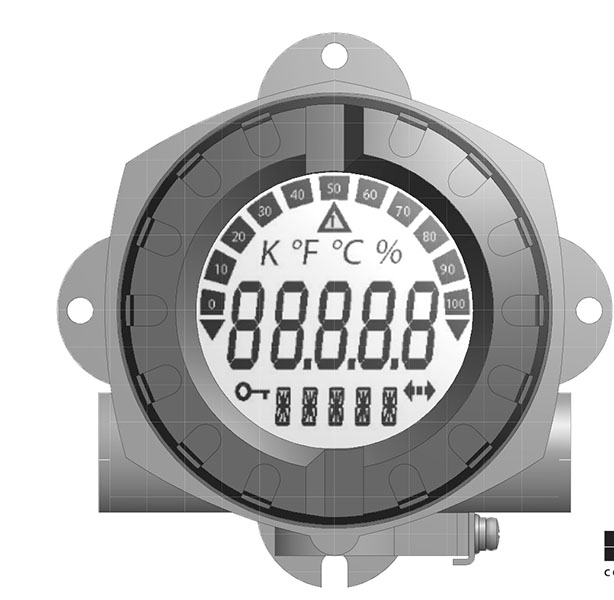

The T142 programmable HART® field temperature transmitter is a two-wire transmitter with analog output. It has measurement input for resistance thermometers (RTDs) in 2-, 3-, or 4-wire connections, thermocouples, and voltage signals. The transmitter is available with or without a digital display. The unit can be programmed with a PC or a HART® protocol handheld terminal. The backlit LC display indicates the current measured value numerically and has a bar graph with limit value violation indicator. The T142 is approved by CSA, ATEX/IECEx for Intrinsically Safe, Non-Incendive and Hazardous Location applications.
Unit of Measure

Specifications

Brands

 N/A HART® Pyromation®

Configuration Code

 N/A TM01

Transmitter Type

 N/A Code T142A
Description - (4 to 20) mA HART® Field Transmitter with general-purpose aluminum housing

Code T142C
Description - (4 to 20) mA HART® Field Transmitter with explosionproof aluminum housing; CSA / XP Class I / Div 1/ Groups A,B,C,D / DIP Class II / Div 1 / Groups E,F,G / Class III

Code T142E
Description - (4 to 20) mA HART® Field Transmitter with flame-proof/ dust-protected aluminum housing; ATEX/IECEx; Ex d IIC T6...T4Gb; Ex tb IIIC T110 ºC Db

Code T142F
Description - (4 to 20) mA HART® Field Transmitter with general-purpose aluminum housing; IS CSA Class I, Zone 0, AEx ia IIIC T6...T4 Ga EX/AEx ia IIC Ga and NI/NIFW I.S. Class I, Div. 1, Gr. ABCD T6...T4 Class I, Division 2, Groups ABCD; T6...T4 (I.S. Associated Equipment, NIFW for sensor connections)

Code T142G
Description - (4 to 20) mA HART® Field Transmitter with general-purpose aluminum housing; IS ATEX/IECEx II 1G, II 2G, II 2D Ex ia IIC T6...T4 Ga Ex ia IIC T6...T4 Gb Ex ia IIIC T85...T110 C Db

Options

 N/A Code B - Bluetooth® (APP) Configuration Code D - Glass Cover with Digital Display Code T - Solid Cover

Input Type

 N/A Code 00 - Unconfigured (Default setting for unconfigured transmitter is 4-wire Pt100 (0 - 100) ºC.) Code 1 - Thermocouple (TC) or Millivolt Code 2 - Resistance Temperature Detectors (RTD) (2-Wire) Code 3 - Resistance Temperature Detectors (RTD) (3-Wire) Code 4 - Resistance Temperature Detectors (RTD) (4-Wire)
Sensor Type1 N/A Code 55 - 500 ohm Platinum (α = 0.003 85 ºC-1) Code 85 - 100 ohm Platinum (α = 0.003 85 ºC-1) Code 95 - 1000 ohm Platinum (α = 0.003 85 ºC-1) Code B - Type B Thermocouple Code E - Type E Thermocouple Code J - Type J Thermocouple Code K - Type K Thermocouple Code Mv - Millivolts Code N - Type N Thermocouple Code R - Type R Thermocouple Code S - Type S Thermocouple Code T - Type T Thermocouple Code W - Resistance

Failure Mode

 N/A Code D - Downscale Burnout = ≤ 3 mA Code U - Upscale Burnout = ≥ 23 mA

Range

 N/A Code S - (Lower Limit – Upper Limit)

Unit of Measure

 N/A Code C - Celsius Code F - Fahrenheit Code K - Kelvin

Accessories

Accessories

 N/A Code 10321 - Pipe Mounting Bracket Code 22934 - Replacement Display Board

Additional Information

Additional Information

 N/A There is also an optional Bluetooth® configuration. These transmitters are available in General-Purpose or Explosion-Proof aluminum housings.
  • PC programmable for converting various RTD, Thermocouple, resistance or voltage inputs into a scalable (4 to 20) mA analog output signal
  • Optional display with direct or remote mount housing
  • Optional Bluetooth® Configuration
  • Expanded approvals, including CSA, ATEX and IECEx-ratings for Hazardous Location configurations
  • Programmable with HART® 7 protocol for various inputs
  • 1 Other types available. Consult factory.
