  • W81 Series Sanitary Weld-In Thermowells

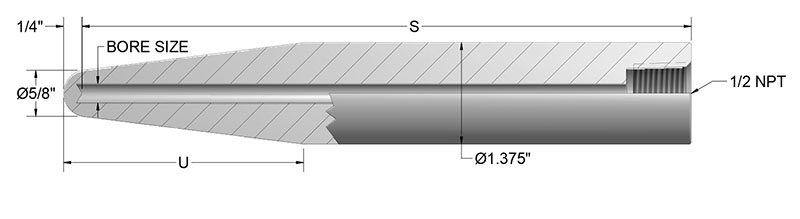

Sanitary Weld-In Thermowells are offered in 316 stainless steel. The thermowell is designed to be welded into a tank or vat with a full crevice-free fillet-weld to prevent corrosion, bacteria growth, and product contamination. Thermowells are supplied with a surface finish that meets or exceeds 32 µin Ra. Surface finishes of 15 µin Ra or better are available upon request. They are designed with a standard 0.260" bore diameter to accommodate sensing elements with a 0.252" maximum diameter. These wells are available as separate components or as part of complete sensor assemblies.
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Well Type

Length S

Length U

Material

N/A W81 Series 8-1/4 Inch (in) Length "S" Sanitary Weld-In Thermowell N/A Sanitary Weld-in N/A 8-1/4 in N/A 3-1/4 in N/A 316 Stainless Steel (SS)
N/A W81 Series 8-1/4 Inch (in) Length "S" Sanitary Weld-In Thermowell N/A Sanitary Weld-in N/A 8-1/4 in N/A 3-1/4 in N/A 316 Stainless Steel (SS)
N/A W81 Series 9-7/8 Inch (in) Length "S" Sanitary Weld-In Thermowell N/A Sanitary Weld-in N/A 9-7/8 in N/A 3-1/4 in N/A 316 Stainless Steel (SS)
N/A W81 Series 9-7/8 Inch (in) Length "S" Sanitary Weld-In Thermowell N/A Sanitary Weld-in N/A 9-7/8 in N/A 3-1/4 in N/A 316 Stainless Steel (SS)
N/A W81 Series 11-5/8 Inch (in) Length "S" Sanitary Weld-In Thermowell N/A Sanitary Weld-in N/A 11-5/8 in N/A 5 in N/A 316 Stainless Steel (SS)
N/A W81 Series 11-5/8 Inch (in) Length "S" Sanitary Weld-In Thermowell N/A Sanitary Weld-in N/A 11-5/8 in N/A 5 in N/A 316 Stainless Steel (SS)
N/A W81 Series 12-7/8 Inch (in) Length "S" Sanitary Weld-In Thermowell N/A Sanitary Weld-in N/A 12-7/8 in N/A 3-3/4 in N/A 316 Stainless Steel (SS)
N/A W81 Series 12-7/8 Inch (in) Length "S" Sanitary Weld-In Thermowell N/A Sanitary Weld-in N/A 12-7/8 in N/A 3-3/4 in N/A 316 Stainless Steel (SS)
