  • DIN Form B Style Ceramic Terminal Blocks
The DIN Style terminal blocks are 42 mm and 50 mm in diameter. The terminal blocks are supplied with a ceramic base. They can be provided in 2-, 3-, 4-, 6-, or 8-terminal configurations.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Conductor Size

Terminal Position

Diameter

Base Material

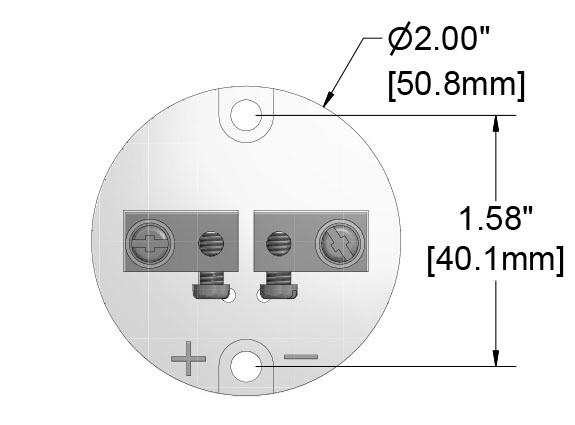

N/A Up to 8 American Wire Gauge (AWG) Conductor Size 2-Pole Terminal Block (8, 11, 14 AWG) N/A 11 AWG14 AWG8 AWG N/A N/A 2.00 in50.8 mm N/A Ceramic
N/A Up to 16 American Wire Gauge (AWG) Conductor Size 4-Pole Terminal Block N/A Up to 16 AWG N/A N/A 1.67 in42.4 mm N/A Ceramic
N/A Up to 16 American Wire Gauge (AWG) Conductor Size 2-Pole Terminal Block N/A Up to 16 AWG N/A 1 3 N/A N/A Ceramic
N/A Up to 16 American Wire Gauge (AWG) Conductor Size 3-Pole Terminal Block N/A Up to 16 AWG N/A 1 3 5 N/A N/A Ceramic
N/A Up to 16 American Wire Gauge (AWG) Conductor Size 4-Pole Terminal Block N/A Up to 16 AWG N/A 1 3 4 6 N/A N/A Ceramic
N/A Up to 16 American Wire Gauge (AWG) Conductor Size 6-Pole Terminal Block N/A Up to 16 AWG N/A 1 2 3 4 5 6 N/A 1.69 in42.9 mm N/A Ceramic
N/A Up to 16 American Wire Gauge (AWG) Conductor Size 8-Pole Terminal Block N/A Up to 16 AWG N/A All Positions N/A 1.72 in43.6 mm N/A Ceramic
