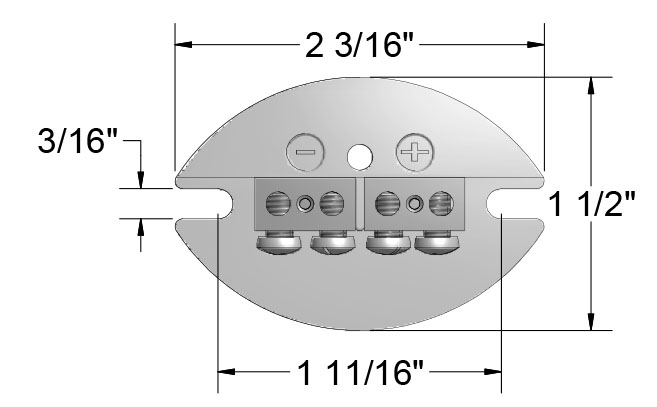

  • Single Ceramic Terminal Block
The terminal blocks, listed below, fit all Pyromation series 31, 34, 49, 63, 91 and 800 series connection heads. The terminal blocks are provided with a steatite ceramic base, brass terminal pieces, and stainless steel screws. These terminal blocks are not rated for high voltage use, but can be used in temperature sensor or low voltage Class 2 circuits. Series 341 and 342 terminal blocks accept up to an #8 gauge wire, and the series 343 accepts up to a #12 gauge wire.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Conductor Size

Terminal Position as Supplied

Width

Height

N/A Single Ceramic Terminal Block N/A Up to 8 AWG N/A N/A 2-3/16 in N/A 1-1/2 in
N/A Duplex Ceramic Terminal Block N/A Up to 8 AWG N/A N/A 2-1/8 in N/A 1-1/2 in
N/A Triplex Ceramic Terminal Block with 2 Brass Terminals N/A Up to 12 AWG N/A 1 3 N/A 2-1/8 in N/A 1-1/2 in
N/A Triplex Ceramic Terminal Block with 3 Brass Terminals N/A Up to 12 AWG N/A 2 4 6 N/A 2-1/8 in N/A 1-1/2 in
N/A Triplex Ceramic Terminal Block with 4 Brass Terminals N/A Up to 12 AWG N/A 1 3 4 6 N/A 2-1/8 in N/A 1-1/2 in
N/A Triplex Ceramic Terminal Block with 6 Brass Terminals N/A Up to 12 AWG N/A All Positions N/A 2-1/8 in N/A 1-1/2 in
