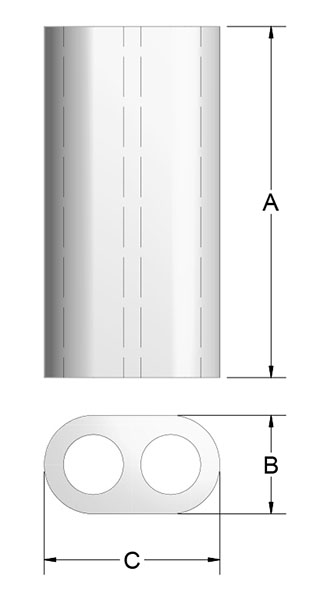

Item #	Item Name	Dimension A	Dimension B	Dimension C	Size

408-1C	N/A 1 Inch (in) Dimension A Cordierite Insulator	N/A 1 in	N/A 0.281 in	N/A 0.500 in	N/A 8 gauge
408-1R	N/A 1 Inch (in) Dimension A Cordierite Insulator	N/A 1 in	N/A 0.465 in	N/A	N/A 8 gauge
408-3C	N/A 3 Inch (in) Dimension A Cordierite Insulator	N/A 3 in	N/A 0.281 in	N/A 0.500 in	N/A 8 gauge
408-3R	N/A 3 Inch (in) Dimension A Cordierite Insulator	N/A 3 in	N/A 0.465 in	N/A	N/A 8 gauge
408-12S	N/A 12 Inch (in) Dimension A Cordierite Insulator	N/A 12 in	N/A 0.260 in	N/A	N/A 8 gauge
411-1C	N/A 1 Inch (in) Dimension A Cordierite Insulator	N/A 1 in	N/A 0.218 in	N/A 0.375 in	N/A 11 gauge
411-3C	N/A 3 Inch (in) Dimension A Cordierite Insulator	N/A 3 in	N/A 0.218 in	N/A 0.375 in	N/A 11 gauge
414-1C	N/A 1 Inch (in) Dimension A Cordierite Insulator	N/A 1 in	N/A 0.188 in	N/A 0.313 in	N/A 14 gauge
414-1R	N/A 1 Inch (in) Dimension A Cordierite Insulator	N/A 1 in	N/A 0.250 in	N/A	N/A 14 gauge
414-3C	N/A 3 Inch (in) Dimension A Cordierite Insulator	N/A 3 in	N/A 0.188 in	N/A 0.313 in	N/A 14 gauge
414-12S	N/A 12 Inch (in) Dimension A Cordierite Insulator	N/A 12 in	N/A 0.200 in	N/A	N/A 14 gauge
420-1C	N/A 1 Inch (in) Dimension A Cordierite Insulator	N/A 1 in	N/A 0.188 in	N/A 0.172 in	N/A 20 gauge
424-12	N/A 12 Inch (in) Dimension A Alumina Insulator	N/A 12 in	N/A 0.188 in	N/A	N/A 24 gauge
424-18	N/A 18 Inch (in) Dimension A Alumina Insulator	N/A 18 in	N/A 0.188 in	N/A	N/A 24 gauge
424-24	N/A 24 Inch (in) Dimension A Alumina Insulator	N/A 24 in	N/A 0.188 in	N/A	N/A 24 gauge
424-30	N/A 30 Inch (in) Dimension A Alumina Insulator	N/A 30 in	N/A 0.188 in	N/A	N/A 24 gauge
