  • Miniature Nickel-plated Steel Connection Heads

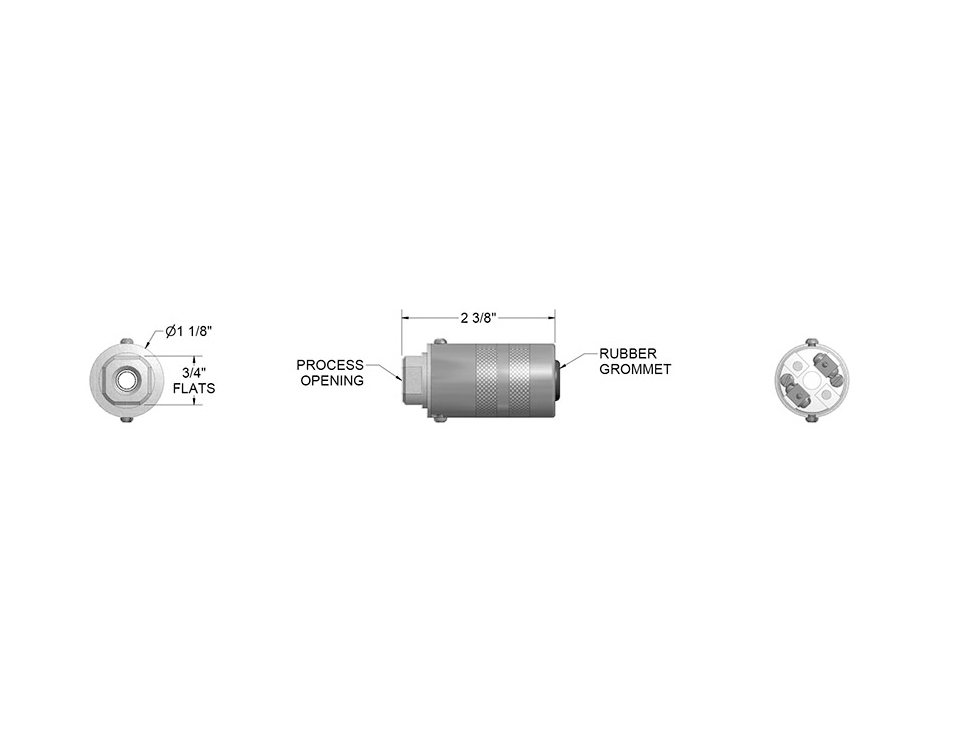

The miniature nickel-plated connection heads listed below are for indoor or outdoor non-hazardous locations. They provide some degree of protection from dust, rain, and splashing water. The heads come standard with an O-ring moisture seal where the cap connects to the body, and a rubber grommet where the wire exits the cap. The nickel plating provides good corrosion protection. The 362 series connection heads are available with a 1/8" NPT or 1/4" NPT process connections, along with 2-, 3-, or 4-terminal configurations.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Configuration Code

Number of Terminals

Process Opening

N/A 2 Number of Terminals 1/8 Inch (in) National Pipe Thread (NPT) Process Opening Miniature Nickel-Plated Steel Connection Head N/A HB01 N/A 2 N/A 1/8 Inch (in) National Pipe Thread (NPT)
N/A 3 Number of Terminals 1/8 Inch (in) National Pipe Thread (NPT) Process Opening Miniature Nickel-Plated Steel Connection Head N/A HB01 N/A 3 N/A 1/8 Inch (in) National Pipe Thread (NPT)
N/A 4 Number of Terminals 1/8 Inch (in) National Pipe Thread (NPT) Process Opening Miniature Nickel-Plated Steel Connection Head N/A HB01 N/A 4 N/A 1/8 Inch (in) National Pipe Thread (NPT)
N/A 2 Number of Terminals 1/4 Inch (in) National Pipe Thread (NPT) Process Opening Miniature Nickel-Plated Steel Connection Head N/A HB01 N/A 2 N/A 1/4 Inch (in) National Pipe Thread (NPT)
N/A 3 Number of Terminals 1/4 Inch (in) National Pipe Thread (NPT) Process Opening Miniature Nickel-Plated Steel Connection Head N/A HB01 N/A 3 N/A 1/4 Inch (in) National Pipe Thread (NPT)
N/A 4 Number of Terminals 1/4 Inch (in) National Pipe Thread (NPT) Process Opening Miniature Nickel-Plated Steel Connection Head N/A HB01 N/A 4 N/A 1/4 Inch (in) National Pipe Thread (NPT)
