Brands
|
N/A
Pyromation®
|
Shank Type
|
N/A
Tubes
|
Configuration Code
|
N/A
ID07
|
|
Thermocouple Type and Wire Gauge Size1
|
N/A
J14A J8A K11A K14A K8A N14A N8A
|
Hot Leg Protection Tube Material
|
N/A
Code 3 - Alloy 600 Code 5 - 446 Stainless Steel Code 6 - Carbon Steel Code 7 - Alloy 601 Code 8 - 316 Stainless Steel
|
Hot Leg National Pipe Thread (NPT) Thread Pipe Size for 1/2 Inch
|
N/A
Code 316 Stainless Steel - 50 inCode 316 Stainless Steel - 75 inCode 446 Stainless Steel - 50 inCode 446 Stainless Steel - 75 inCode Alloy 600 - 50 inCode Alloy 600 - 75 inCode Alloy 601 - 50 inCode Alloy 601 - 75 inCode Carbon Steel - 50 inCode Carbon Steel - 75 in
|
Hot Leg National Pipe Thread (NPT) Thread Pipe Size for 3/4 Inch
|
N/A
Code 316 Stainless Steel - 75 inCode 446 Stainless Steel - 75 inCode Alloy 600 - 75 inCode Alloy 601 - 75 inCode Carbon Steel - 75 in
|
Hot Leg National Pipe Thread (NPT) Thread Pipe Size for 1 Inch
|
N/A
Code 100 - 316 Stainless Steel inCode 100 - 446 Stainless Steel inCode 100 - Alloy 601 inCode 100 - Carbon Steel inCode N/A - Alloy 600 in
|
Hot Leg Length
|
N/A
12 in18 in24 in30 in36 in
|
Cold Leg Length
|
N/A
12 in18 in24 in30 in36 in
|

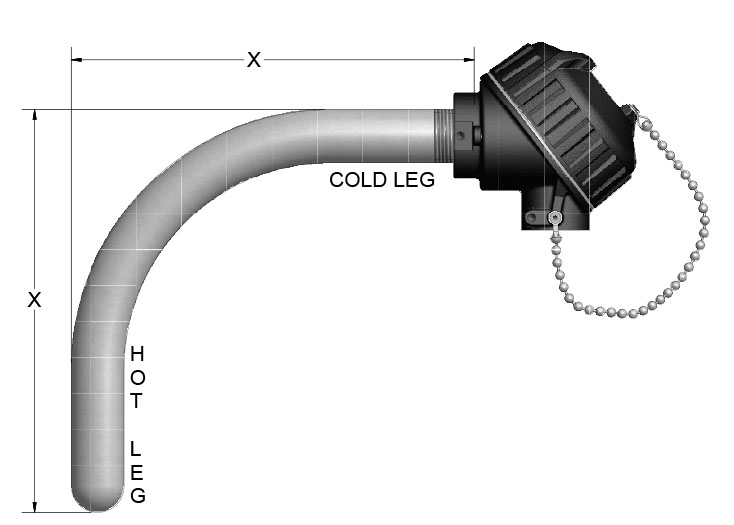

Continuous Bend Radius
|
N/A
1" National Pipe Thread (NPT) = 5(7/8)" 1/2" National Pipe Thread (NPT) = 4(5/8)" 3/4" National Pipe Thread (NPT) = 4(5/8)"
|
|
Optional Welded Bushings Material2
|
N/A
Code 6D(U) - Steel Code 6E(U) - Steel Code 6F(U) - Steel Code 6G(U) - Steel Code 8D(U) - 316 Stainless Steel Code 8E(U) - 316 Stainless Steel Code 8F(U) - 316 Stainless Steel Code 8G(U) - 316 Stainless Steel
|
Bushing Size
|
N/A
Code 6D(U) - 3/4 NPT Bushing (50 tubes only) Code 6E(U) - 1 NPT Bushing (50 and 75 tubes Code 6F(U) - 1 -1/4 NPT Bushing Code 6G(U) - 1-1/2 NPT Bushing Code 8D(U) - 3/4 NPT Bushing (50 tubes only) Code 8E(U) - 1 NPT Bushing (50 and 75 tubes Code 8F(U) - 1-1/4 NPT Bushing Code 8G(U) - 1-1/2 NPT Bushing
|
Head Terminations
|
N/A
Code 31 - Aluminum Screw-Cover Head Code 34 - Cast-Iron screw-cover head Code 49 - Flip-Top Aluminum Head
|
Assembly Options
|
N/A

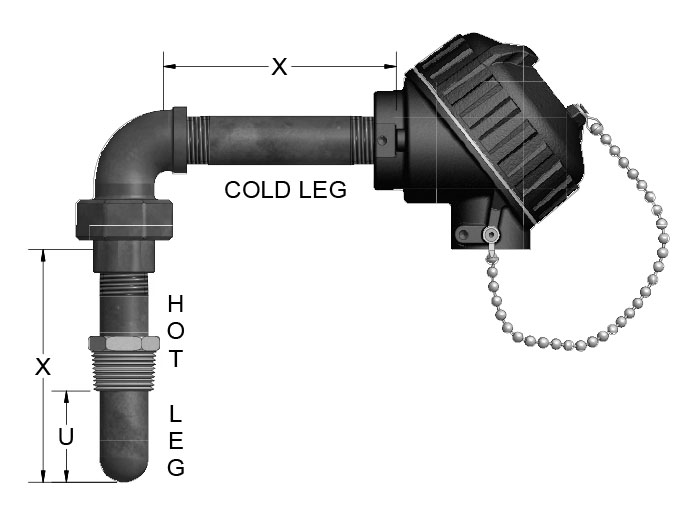

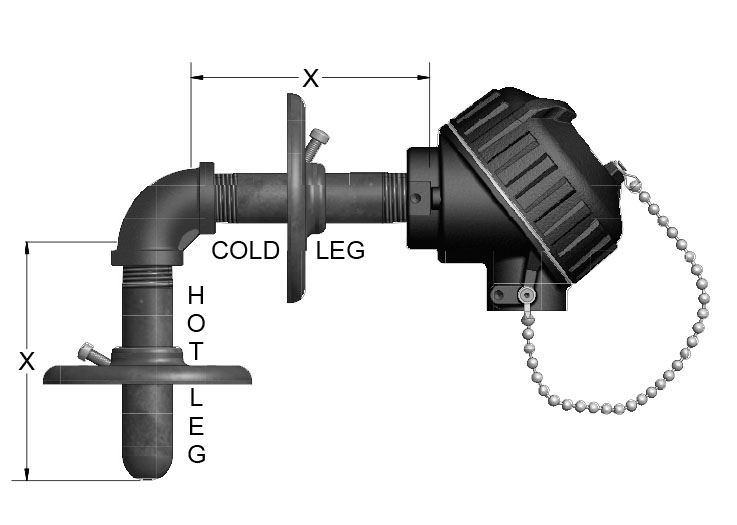

Code CB (Requires 12" minimum on Hot Leg and Cold Leg) - Continuous bend-angle assembly Code GS - Ground screw Code H - Adjustable steel mounting flange Code HC - Adjustable steel flange (cold leg) Code I - Insulated hot junction Code L - Stainless tag Code SB - 1/2" NPT conduit reducer bushing Code UL - Steel union elbow
|
Element
|
N/A
Code 11- Duplex Code 11- Single Code 14 - Duplex Code 14 - Single Code 8 - Duplex Code 8 - Single
|
Hot Leg Tube Availability
|
N/A
100 50 75
|
Cold Leg Supplied
|
N/A
3/4" NPT on HL tube codes 50, 75. 1" NPT on HL tube codes 100. 1" NPT on duplex 8 and 11 gauge assemblies.
|
