N/A Pyromation® |
Configuration Code |
N/A RT01 RT02 |
No Fitting or Bend Options |
N/A Code 00 |
Sheath Bends |
N/A

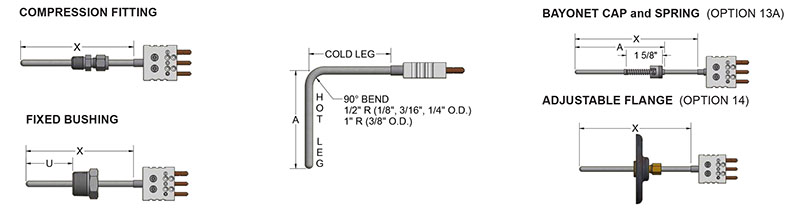

Code 2 _ _ - Sheath bent 45º Code 3 _ _ - Sheath bent 90º 2" minimum hot leg length When ordering bend options, specify hot leg dim. "A". EXAMPLE: order code 206 is a 45° bend with 6" hot leg. Total sheath length is Table 1 "X" length = hot leg plus cold leg. |
Type (One-Time Adjustable Fittings) |
N/A
Code 05A - 316 Stainless Steel Code 05B - 316 Stainless Steel Code 05C - 316 Stainless Steel Code 15A - Brass Code 15B - Brass Code 15C - Brass |
National Pipe Thread (NPT) Size (One-Time Adjustable Compression Fittings) |
N/A Code 05A - 1/8 inCode 05B - 1/4 inCode 05C - 1/2 inCode 15A - 1/8 inCode 15B - 1/4 inCode 15C - 1/2 in |
Pressure Rating (One-Time Adjustable Fittings) |
N/A
Code 05A - Yes Code 05B - Yes Code 05C - Yes Code 15A - No Code 15B - No Code 15C - No |
Sheath Diameter (One-Time Adjustable Compression Fittings) |
N/A Code 05A - 1/8, 3/16, 1/4 inCode 05B - 1/8, 3/16, 1/4, 3/8 inCode 05C - 1/8, 3/16, 1/4, 3/8 inCode 15A - 1/8, 3/16, 1/4 inCode 15B - 3/16, 1/4, 3/8 inCode 15C - 1/4, 3/8 in |
Type (Re-Adjustable Compression Fittings) |
N/A
Code 12A - 316 stainless steel Code 12B - 316 stainless steel Code 12C - 316 stainless steel Code 11A - Brass Code 11B - Brass Code 11C - Brass Code 19C - Spring-loaded SS well fitting |
National Pipe Thread (NPT) Size (Re-Adjustable Compression Fittings) |
N/A Code 11A - 1/8 inCode 11B - 1/4 inCode 11C - 1/2 inCode 12A - 1/8 inCode 12B - 1/4 inCode 12C - 1/2 inCode 19C - 1/2 in |
Sheath Diameter (Re-Adjustable Compression Fittings) |
N/A Code 11A - 1/8, 3/16, 1/4 inCode 11B - 1/8, 3/16, 1/4, 3/8 inCode 11C - 1/4, 3/8 inCode 12A - 1/8, 3/16, 1/4 inCode 12B - 1/8, 3/16, 1/4, 3/8 inCode 12C - 1/8, 3/16, 1/4, 3/8 inCode 19C - 3/16, 1/4 in |
Note for Re-Adjustable Compression Fittings |
N/A FEP gland standard 204 ºC [400 ºF] max. For lava gland 649 ºC [1200 ºF] max. opt. 12A, 12B, and 12C only use letter suffix "L" after compression fitting order code. EXAMPLE: 12AL for lava gland. |
Miscellaneous Options |
N/A
Code 13A _ _(When ordering fixed bayonet fitting specify dimension "A". EXAMPLE: order code 13A06 is for a fixed bayonet adapter with 6" A Dimension.) Type: Spring-loaded bayonet fitting Sheath Diameter: 1/8 in, 3/16 in Code 14 Type: Adjustable flange with brass compression fitting Sheath Diameter: 1/8 in, 3/16 in, 1/4 in, 3/8 in Code 16A Type: Spring-loaded adjustable bayonet compression fitting Sheath Diameter: 1/8 in |
Fixed Bushing Mounting National Pipe Thread (NPT) Size |
N/A Code 8A _ _ - 1/8 in. (When ordering fixed bushings, specify order code above, plus insertion length "U", as measured from hot tip to bottom of threaded bushing. EXAMPLE: order code 8A06 is 1/8" NPT, 316 SS bushing located 6" from hot tip.) Code 8B _ _ - 1/4 in. (When ordering fixed bushings, specify order code above, plus insertion length "U", as measured from hot tip to bottom of threaded bushing. EXAMPLE: order code 8A06 is 1/8" NPT, 316 SS bushing located 6" from hot tip.) Code 8C _ _ - 1/2 in. (When ordering fixed bushings, specify order code above, plus insertion length "U", as measured from hot tip to bottom of threaded bushing. EXAMPLE: order code 8A06 is 1/8" NPT, 316 SS bushing located 6" from hot tip.) Code 8D _ _ - 3/4 in. (When ordering fixed bushings, specify order code above, plus insertion length "U", as measured from hot tip to bottom of threaded bushing. EXAMPLE: order code 8A06 is 1/8" NPT, 316 SS bushing located 6" from hot tip.) |
Fixed Bushing Sheath Diameter |
N/A Code 8A _ _ - 1/8, 3/16, 1/4 in. (When ordering fixed bushings, specify order code above, plus insertion length "U", as measured from hot tip to bottom of threaded bushing. EXAMPLE: order code 8A06 is 1/8" NPT, 316 SS bushing located 6" from hot tip.) Code 8B _ _ - 1/8, 3/16, 1/4, 3/8 in. (When ordering fixed bushings, specify order code above, plus insertion length "U", as measured from hot tip to bottom of threaded bushing. EXAMPLE: order code 8A06 is 1/8" NPT, 316 SS bushing located 6" from hot tip. Code 8C _ _ - 1/8, 3/16, 1/4, 3/8 in. (When ordering fixed bushings, specify order code above, plus insertion length "U", as measured from hot tip to bottom of threaded bushing. EXAMPLE: order code 8A06 is 1/8" NPT, 316 SS bushing located 6" from hot tip. Code 8D _ _ - 1/8, 3/16, 1/4, 3/8 in. (When ordering fixed bushings, specify order code above, plus insertion length "U", as measured from hot tip to bottom of threaded bushing. EXAMPLE: order code 8A06 is 1/8" NPT, 316 SS bushing located 6" from hot tip. |
