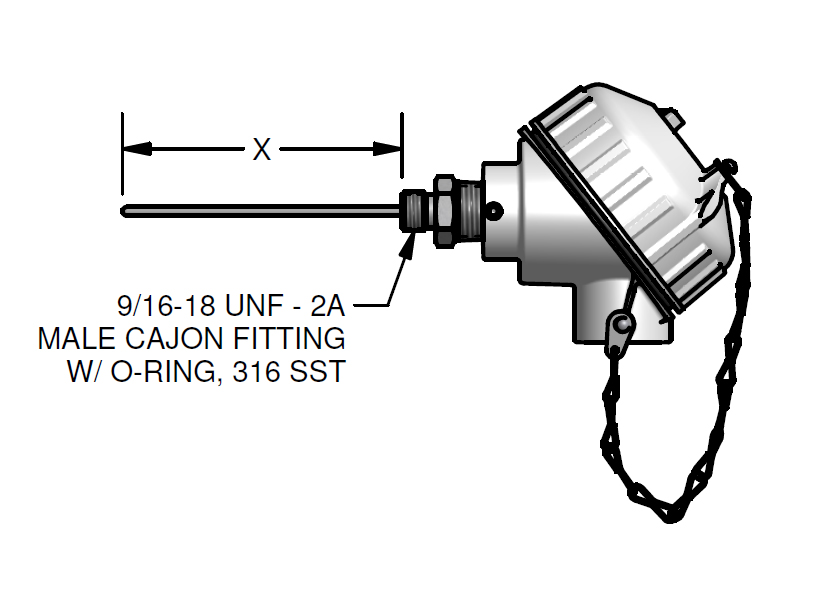

The types listed below are RTD temperature sensor assemblies designed to meet the stringent requirements of ultra-high temperature (UHT) pasteurization systems. In the UHT process the products are pasteurized at a higher temperature, typically 138° C for a shorter period of time - usually 2-3 seconds. The RTD sensor assemblies are available in a variety of accuracies, wire configurations, and termination options. They are also available with a variety of (4-20) mA transmitter options. All wetted parts are supplied with a surface finish that meets or exceeds 32µin Ra Surface finishes of 15µin Ra or better are available upon request. These assemblies are supplied with a 9/16” -18 UNF-2A process connection and Fluorocarbon O-ring on the face of the fitting. These RTD assemblies are designed to be used with a weld-in style thermowell as noted on the following page.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A FD10

Tolerance

 N/A Code R1T185H (Single) - Grade B Tolerance Code R1T185L (Single) - Grade B Tolerance Code R1T285H (Duplex) 3/16 Outer Diameter (OD) - Grade B Tolerance Code R1T285L (Duplex) 3/16 Outer Diameter (OD) - Grade B Tolerance Code R3T185L (Single) - Class AA Tolerance Code R3T285L (Duplex) 3/16 Outer Diameter (OD) - Class AA Tolerance Code R5T185L (Single) - (1/5) Class B Tolerance Code R5T285L (Duplex) 3/16 Outer Diameter (OD) - (1/5) Class B Tolerance Code RAF185L (Single) - Class A Tolerance Code RAF285L (Duplex) 3/16 Outer Diameter (OD) - Class A Tolerance Code RAT185H (Single) - Class A Tolerance Code RAT285H (Duplex) 3/16 Outer Diameter (OD) - Class A Tolerance Code RBF185L (Single) - Class B Tolerance Code RBF285L (Duplex) 3/16 Outer Diameter (OD) - Class B Tolerance

Temperature Range

 N/A Code R1T185H (Single) - 200 to 600 ºCCode R1T185L (Single) - 200 to 200 ºCCode R1T285H (Duplex) - 200 to 600 ºCCode R1T285L (Duplex) - 200 to 200 ºCCode R3T185L (Single) - 200 to 200 ºCCode R3T285L (Duplex) - 200 to 200 ºCCode R5T185L (Single) - 200 to 200 ºCCode R5T285L (Duplex) - 200 to 200 ºCCode RAF185L (Single) - 50 to 200 ºCCode RAF285L (Duplex) - 50 to 200 ºCCode RAT185H (Single) - 200 to 600 ºCCode RAT285H (Duplex) - 200 to 600 ºCCode RBF185L (Single) - 50 to 200 ºCCode RBF285L (Duplex) - 50 to 200 ºC

Sheath Diameters

 N/A Code 28 - 1/8 inCode 38 - 3/16 in

Sheath Materials

 N/A Code 28 - 316 Stainless Steel Code 38 - 316 Stainless Steel

Element Connection

 N/A Code 2 - 2 wires Code 3 - 3 Wires Code 4 - 4 Wires

Head Mounting Fitting and Termination

 N/A Code 8VC45 - 9/16" -18UNF-2A X M12 (Only available in single element, 4 wire construction) Code 8VCB17 - 9/16" - 18UNF-2A process connection with Miniature Plastic head (3/8" National Pipe Thread (NPT) conduit opening) (Only available with single element) Code 8VCB22(XX) - 9/16" - 18UNF-2A X 1/4" National Pipe Thread (NPT) with 3" individual leads and terminal pins (or specified lead length) Code 8VCC22(XX) - 9/16" - 18UNF-2A X 1/2" NPT with 3" individual leads and terminal pins (or specified lead length) Code 8VCC31 - 9/16" - 18UNF-2A process connection with Aluminum screw-cover head (NEMA 4X, IP66) Code 8VCC63 - 9/16" - 18UNF-2A process connection with White Polypropylene screw-cover head (NEMA 4X) Code 8VCC91 - 9/16" - 18UNF-2A process connection with 316L stainless steel screw-cover head (NEMA 4X, IP66)

Head Options

 N/A Code I - Stainless Steel Tag Code NB - Nylon conduit reducer bushing Code SB - Steel conduit reducer bushing Code T-440 - (4 to 20) mA head-mounted RTD transmitter Code T-441 - (4 to 20) mA isolated head-mounted transmitter Code T-442 - (4 to 20) mA isolated HART® head-mounted transmitter Code T-450 - (4 to 20) mA integral RTD transmitter (Only available in single element, 4 wire construction) Code W - Epoxy Coating (Only available with option 31)

Note for Sheath Length

 N/A Specify 2 digit hot leg in inches

Note

Note

 N/A HART® is a registered trademark of HART Communication Foundation.
