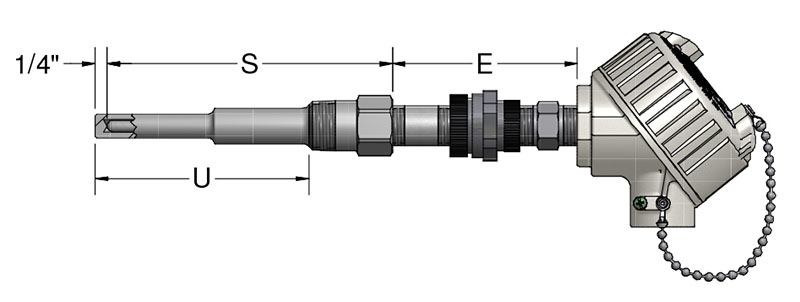

Explosion-Proof Thermocouple Assemblies with Thermowells are made for use in U.S. and Canadian hazardous areas. They are designed to extinguish flames inside the device, eliminating the potential for ignition of flammable mixtures in the surrounding atmosphere. CSA certified assemblies, dependent on connection head type, meet XP Class I Division I & II; Groups A, B, C, D; DIP Class II Division I; Groups E, F, G; Class III; IP66. The required thermowell is available in standard, heavy-duty, and flanged constructions. The assemblies feature 316 stainless steel sheaths and ungrounded isolated junctions. They are available with aluminum or stainless steel explosion-proof connection heads.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A XP04

Agency Approval

 N/A Code XP - FM/CSA Explosion-proof Approved Assembly

Thermocouple Type

 N/A Code E - Single Code EE - Duplex Code J - Single Code JJ - Duplex Code JJJ - Triplex Code K - Single Code KK - Duplex Code KKK - Triplex Code T - Single Code TT - Duplex

Sheath Diameter

 N/A Code 4B - 1/4 in

Sheath Materials

 N/A 316 Stainless Steel

Measuring Junctions

 N/A Code U - Ungrounded

Thermowell Selection

 N/A Select Thermowell from Thermowell Section.

Element Options

 N/A Code SC - Self-contained spring-loaded element Code SL - Spring-loaded Element (Not available with option 75T, 76T, or 77T)

Head Mounting Steel Fittings

 N/A Code 6HN - 1/2 in. x 1/2 in. NPT Hex Nipple 1" Length Code 6PN_ 1/2" NPT Pipe Nipple (Specify "E" Length in inches) Code 6XU_ (3 1/2" Minimum Length required / Maximum Allowable "E" Length is 9") - 1/2" NPT Union/Nipple (Specify "E" Length in inches) Code 8HN - 1/2 in. x 1/2 in. NPT Hex Nipple 1" Length Code 8PN - 1/2" NPT Pipe Nipple (Specify "E" Length in inches) Code 8XU_ (3 1/2" Minimum Length required / Maximum Allowable "E" Length is 9") - 1/2" NPT union/nipple (Specify "E" Length in inches)

Head Mounting 316 Stainless Steel Fittings

 N/A Code 8HN - 1/2 in. x 1/2 in. NPT Hex Nipple 1" Length Code 8PN - 1/2" NPT Pipe Nipple (Specify "E" Length in inches) Code 8XU_ (3 1/2" Minimum Length required Maximum Allowable "E" Length is 9") - 1/2" NPT union/nipple (Specify "E" Length in inches)

Head Terminations

 N/A Code 74 - DIN form B Aluminum Explosion-proof Head Code 75T142B - (4 to 20) mA HART® Field Transmitter with aluminum explosion-proof housing Code 76T82-D10 - (4 to 20) mA Dual Input HART® Field Transmitter with Digital Display and Housing Code 77T-662C - (4 to 20) mA HART® Field Transmitter with dual cavity explosion-proof aluminum housing Code 93 - Aluminum explosion-proof head Code 94 - 316L stainless steel explosion-proof head

Certification

 N/A CSA (Canadian Standards Association) FM Approved

Options

Options

 N/A Code I - Stainless Steel Tag Code T71 - (4 to 20) mA Isolated Head-Mounted Transmitter Code T72 - (4 to 20) mA HART® isolated head-mounted transmitter Code T82-00 - (4 to 20) mA Dual input, isolated HART® head-mounted transmitter SB - 1/2" National Pipe Thread (NPT) conduit reducer bushing

Note

Note

 N/A HART® is a registered trademark of HART® Communication Foundation.
