Heavy-Duty, Flanged Thermowells are available in a variety of materials, flange types, flange sizes, and pressure ratings. They are also available in various lengths and with optional lagging extensions. Thermowell specifications should be determined based on process conditions which include strength, temperature, pressure and corrosion-resistance requirements. Heavy-duty flanged thermowells are supplied with a 0.260" or 0.385" bore diameter to accommodate sensing elements with a 0.252" or 0.377" maximum diameter, respectively. The tapered design is suited for heavy-duty applications where greater rigidity is required for increased pressure and flow due to process conditions. These wells are available as separate components or as part of complete sensor assemblies.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Diameter "V" at 0.260 Inch (in)

 N/A 5/8 in

Diameter "V" at 0.385 Inch (in)

 N/A 49/64 in

Well Type

 N/A Code HF - Heavy-duty flanged

Bore Diameter

 N/A Code 4 - 0.260 inCode Code 6 - 0.385 in

Flange Size

 N/A Code 10 - 1 in. (DN 25) Code 13 - 1-1/4 in. (DN 32) Code 15 - 1-1/2 in. (DN 40) Code 20 - 2 in. (DN 50) Code 30 - 3 in. (DN 80)

Flange Type

 N/A Code F - Flat face Code J - Ring joint Code R - Raised face

Pressure Rating

 N/A Code 1 - 150 Class Code 15 - 1500 Class Code 3 - 300 Class Code 6 - 600 Class Code 9 - 900 Class
Optional Lag Dimension (T)1 N/A Code T - Specify "T" dimension in inches

Note for Material

 N/A Specify two digit material code as stated in the Thermowell Material Table located earlier in section

Note for "S" Length

 N/A Specify length in inches using two digits plus fractional length

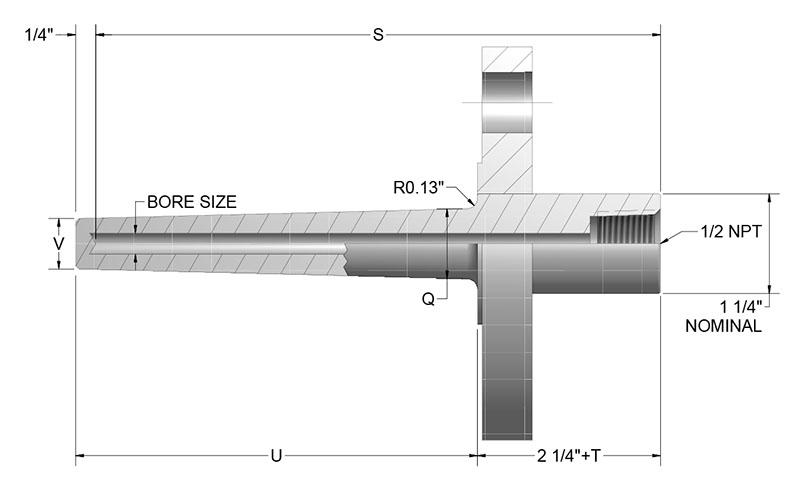

Thermowell Dimensions

Diameter Q at 0.260 Inch (in)

 N/A 7/8 in1-1/16 in

Options

Options

 N/A Code C22 - Brass well cap and chain Code C8 - 316 Stainless steel well cap and chain Code F - Full penetration weld Code S - Well stamped with customer-specified part number

Additional Information

Additional Information

 N/A Maximum tapered length is 16"
("U" length for non-lagging wells) = "S" - 2"
("U" length for lagging wells) = "S" - 2" - "T"
(To solve for "T"), "T" = "S" - "U" - 2" (When "U" and "S" are specified)
  • 1 Leave blank if no lag is required
