Thermocouple and RTD spring-Loaded Replacement elements are designed for spring-loaded thermowell assemblies. The replacement elements can be ordered by selecting the sensor type below and inserting the "X" length in table 2-0. The RTD assemblies are supplied with a 316 stainless steel sheath and are available in various tolerances and temperature ranges as noted in the tables below. The MgO-insulated thermocouple assemblies are supplied with a 316 stainless steel sheath, various calibrations, and as standard limits of error.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A GP06

Available Sheath Outer Diameter (OD)

 N/A Code EE (Duplex) - 48 - 1/4 Code J (Single) - 38 - 3/16 Code JJ (Duplex) - 48 - 1/4 Code JJJ (Triplex) - 38 - 3/16 - 48 - 14 Code K (Single) - 38 - 3/16 Code KK (Duplex) - 48 - 1/4 Code KKK (Triplex) - 38 - 3/16 - 48 - 14 Code T (Single) - 38 - 3/16 Code TT (Duplex) - 48 - 1/4 E (Single) - 38 - 3/16

Sheath Materials

 N/A 316 Stainless Steel

Measuring Junctions

 N/A Code G - Grounded Junction Code U - Ungrounded Junction

Sheath Terminations

 N/A Code 22 - Code 3 in. Individual fluoropolymer leads with terminal pins (For longer leads, insert 2 digit length in inches. Example: 22(06))

Element Style

 N/A Code 00 - Supplied without spring Code SL - Spring-loaded element

Element Connection

 N/A Code 2 - 2-Wire Element Code 3 - 3-Wire Element Code 4 - 4-Wire Element

Note for Length

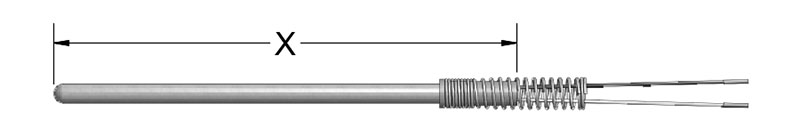

 N/A Insert 3 Digit "X" length in inches
