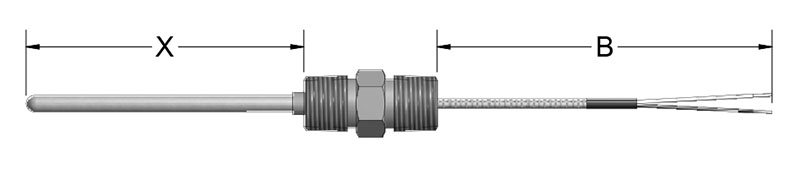

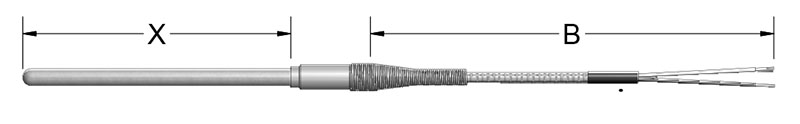

MgO Insulated Thermocouples with Extension Leadwire. MgO Insulated Thermocouples with Sheath Terminations.

A Pyromation MgO thermocouple assembly consists of a thermocouple element swaged in hard-packed, standard-purity (96 %) Magnesium Oxide mineral insulation and encased in a metal sheath. Thermocouple sheaths have been fully annealed; they can be formed into many configurations, and can be bent into a radius of twice the size of its outer sheath. The tables found on this page and the following pages allow customer selection of standard thermocouple types, sheath diameters, mounting fittings and terminations. Custom built products are available upon request.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A MgO1 MgO2

Thermocouple Types

 N/A Code E - Single Code EE - Duplex Code J - Single Code JJ - Duplex Code JJJ - Triplex Code K - Single Code KK - Duplex Code KKK - Triplex Code N - Single Code NN - Duplex Code T - Single Code TT - Duplex

Sheath Diameter

 N/A 1 - 1/16 (1/16 in. will be coiled unless otherwise specified for 36 in. and longer lengths.) 2 - 1/8 3 - 3/16 4 - 1/4 6 - 3/8

Sheath Materials

 N/A Code 3 - Alloy 600 Code 4 - 310 Stainless steel Code 5 - 446 Stainless steel Code 8 - 316 Stainless steel

Standard Available Type

 N/A Code 3 - K, N Code 4 - K Code 5 - K (All sensors with 446SS sheaths must have an ungrounded measuring junction.) Code 8 - E, J, K, T

Measuring Junctions

 N/A Code E - Exposed junction (Not available with 1/16" Outer Diameter (OD) Code G - Grounded Junction Code S - Exposed Shielded Junction Code U - Ungrounded Junction

Special Options

 N/A Code H - High-Purity MgO Insulation (99.4 % Pure) Code M - Special limits of error

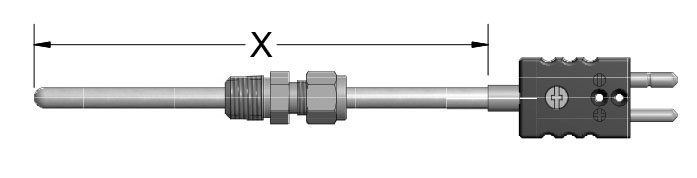

Note for "X" Dimension

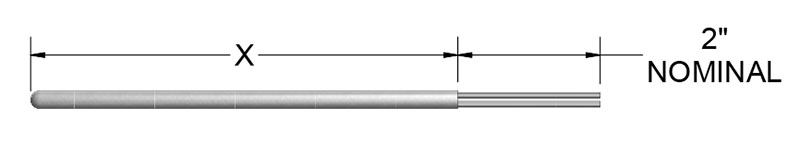

 N/A Insert three digit sheath length ("X" Dimension) in inches Sheath lengths over 72" will be shipped in a coiled configuration unless otherwise specified.

Reduced Tip MgO Thermocouples

Normal Sheath Outer Diameter (OD)

 N/A Code 48R28 - 1/4 inCode 68R38 - 3/8 inCode 88R48 - 1/2 in

Tip Diameter

 N/A Code 48R28 - 1/8 inCode 68R38 - 3/16 inCode 88R48 - 1/4 in

Tip Length

 N/A Code 48R28 - 1 (1/4) inCode 68R38 - 1 (1/4) inCode 88R48 - 1 - 1/4) in

Materials

 N/A Code 48R28 - 316 Stainless Steel Code 68R38 - 316 Stainless Steel Code 88R48 - 316 Stainless Steel
