Brands |
N/A Pyromation® |
Configuration Code |
N/A GP11 |
Thermocouple Type |
N/A Code E - Single Code EE - Duplex Code J - Single Code JJ - Duplex Code JJJ - Triplex Code K - Single Code KK - Duplex Code KKK - Triplex Code N - Single Code NN - Duplex Code T - Single Code TT - Duplex |
Sheath Diameter |
N/A Code 4 - 1/4 inCode 6 (Not available with PC option) - 3/8 in |
Sheath Materials |
N/A Code 3 - Alloy 600 Code 8 - 316 Stainless steel |
Junction Style |
N/A Code G - Grounded Junction Code U - Ungrounded Junction |
Element Options |
N/A Code 8VS50 - 316 Stainless Steel Vibration Spacers for 1/2 inch Schedule 40 Pipe Code 8VS75 - 316 Stainless Steel Vibration Spacers for 3/4 inch Schedule 40 Pipe Code LE - Loose Element (Only available with option 10 sheath termination) Code M - Special Limits of Error Code PC - Self contained spring-loaded element (Only available with option 22 sheath termination) Code SL - Spring-Loaded Element (Only available with option 22 sheath termination) |

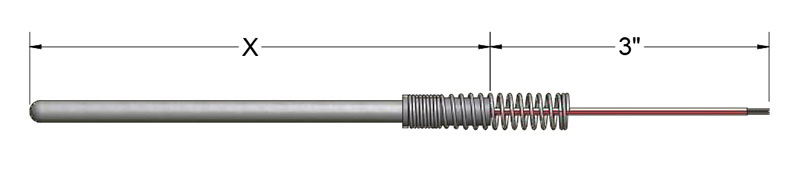

Element "X" Length |
N/A Specify length in one inch increments. 4 inch minimum to 240 inch maximum. |
Sheath Terminations |
N/A Code 10 - 2 inch Stripped Leads Code 22 - 3 inch Individual Leads with Terminal Pins |
Note for Sheath Terminations |
N/A For Longer Leads, Insert 2 Digit Length in Inches. Example: 22(06) or 10(04) |
Replacement Element "X" Dimension Calculations |
N/A LE - Same as Assembly "X" Length PC - Assembly "X" Length + "E" Length + 1/2 inch SL - Assembly "X" Length - 1/4 inch |

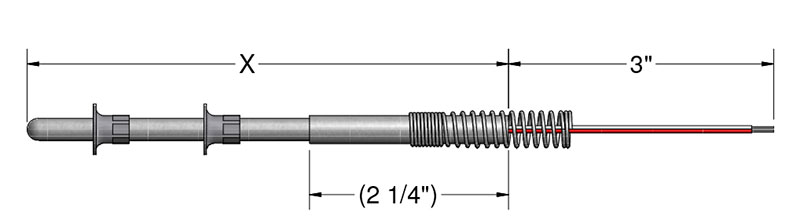

Standard Vibration Spacer Placement |
N/A 1 Additional Spacer for each Additional 18 In. All Spacers are Equally Spaced. For > 36 in. Assembly Length 2 Spacers Equally Spaced for 4 to 18 in. Assembly Length 3 Spacers Equally Spaced for > 18 to 36 in. Assembly Length |
