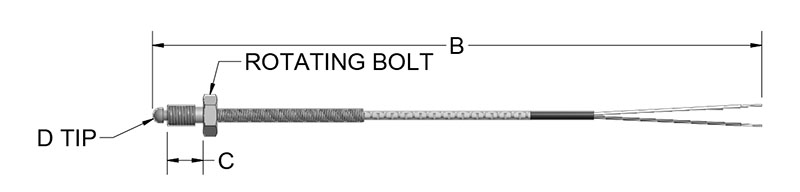

The threaded nozzle thermocouple illustrated below is generally used to measure the temperature of the nozzle of an injection molding machine. This style is not in direct contact with the molten plastic. Due to the relatively small size of this sensor, other general areas of use include mounting in bearing housings, sealing bars, heat plates, and other limited space applications.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A PL08

Thermocouple Types

 N/A Code JTN - Iron - Constantan

Note for Other Element Types

 N/A For type E, K or T thermocouples, replace J in order code with required letter designation.

Junction

 N/A Grounded junctions supplied as standard. Insert "U" only when requiring an ungrounded junction.

Terminations

 N/A Code 0 - Leads not stripped Code 2 - 2 in. split leads, 1/4" stripped Code 3 - 2 in. split leads with spade lugs Code 4 - Standard plug Code 5 - Standard jack Code 6 - Miniature plug Code 7 - Miniature jack Code 8 - 2 in. split leads with 1/4 in. female disconnects

Bolt Designation

Thread Size

 N/A Code F6 - 1/4 in.- 28 Code G8 - 3/8 in.- 24 Code I6 - 6 mm x 1 mm Code K6 - 8 mm x 1.25 mm Code M10 - 10 mm x 1.50 mm

Tip Dimension "D"

 N/A Code F6 - 3/16 inCode G8 - 1/4 inCode I6 - 3/16 inCode K6 - 1/4 inCode M10 - 1/4 in

Length "C"

 N/A Code F6 - 3/8 in. Code G8 - 1/2 in. Code I6 - 10 mm Code K6 - 10 mm Code M10 - 16 mm
Extension Length "B"1 N/A Code F1 - Fiberglass insulation - solid conductor Code F1B - Fiberglass insulation - solid conductor - stainless steel overbraid Code F3 - Fiberglass insulation - stranded conductor Code F3B - Fiberglass insulation - stranded conductor - stainless steel overbraid

Note for Bolt Designation

 N/A Other bolt sizes available; consult factory

Options

Options

 N/A BX - Box connector CC - Cable clamp MC - Mating connector
  • 1 Insert 3 digit "B" length in inches. EX: F3B024=24" "B" length.
