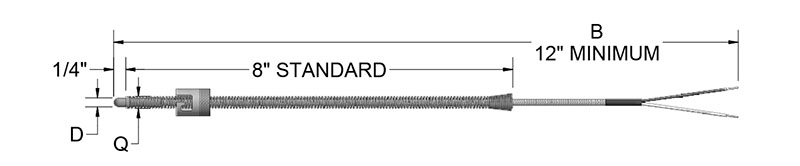

The JB series spring-adjustable immersion thermocouple has a bayonet cap on an 8" spring (standard) to allow for immersion depths of 1/2" to 7". This assembly is used in a variety of applications (with a bayonet adapter) where ease of installation and quick disconnect is preferred. Standard and metric size bayonet caps and adapters are available.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A PL03

Thermocouple Type

 N/A Code JB - Single Code JJB - Duplex (Duplex not Available with 1/8" O.D. Tip.)

Calibration Type

 N/A J

Note for Other Elements Types

 N/A For Type K or T Thermocouples, Replace J in Order Code with Required Letter Designation.

Bayonet Cap Style

 N/A Code A - 7/16 in. I.D. Single Slot (Standard) (Not Available with Opt. 4 Tip) Code B - 12 mm I.D. Dual Slot Code C - 12 mm O.D. Dual Pin Code D - 15 mm I.D. Dual Slot

Tip Outer Diameter (O.D)

 N/A Code 2 - 0.125 inCode 3 - 0.188 inCode 4 - 0.250 in

Spring Outer Diameter (Dimension Q)

 N/A Code 2 - 0.203 inCode 3 - 0.263 inCode 4 - 0.324 in

Junction

 N/A Grounded junctions supplied as standard. Insert "U" only when requiring an ungrounded junction.

Extension Leadwire "B" Dimension

 N/A Code F3B - Fiberglass insulation - stranded conductor - stainless steel overbraid

Terminations

 N/A Code 0 - Leads not stripped Code 2 - 2 in. split leads, 1/4 in. stripped Code 3 - 2 in. split leads with spade lugs Code 4 - Standard plug Code 5 - Standard jack Code 6 - Miniature plug Code 7 - Miniature jack Code 8 -2 in. Split Leads with 1/4 in. Female Disconnects

Intended Applications

 N/A Plastics

Options

Options

 N/A BX - Box connector CC- Cable Clamp LS - 12 in. Long Spring (3/16 in. O.D. only) MC - Mating connector

Note

Note

 N/A Insert 3 Digit "B" Length in inches.EX: F3B024=24" "B" Length.
