The nozzle-melt temperature sensors listed below are typically placed into the nozzle of a plastic injection molding machine and sense the temperature of the molten plastic prior to being injected into the mold. They are offered in a variety of thermocouple types as listed below. The RTDs are constructed using a 100 Ω platinum element with a temperature coefficient of 0.003 85 ºC-1(IEC Class B). Elements of other materials, values, and tolerances are available upon request.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A PL07

Thermocouple Types

 N/A Code JNM12 Code JNM14 Code JNM22 Code JNM24 Code JNM32 Code JNM34

Tip Length for Thermocouple

 N/A Code JNM12 - 1/8 inCode JNM14 - 1/4 inCode JNM22 - 1/8 inCode JNM24 - 1/4 inCode JNM32 - 1/8 inCode JNM34 - 1/4 in

Bend Angle for Thermocouple

 N/A Code JNM12 - Straight Code JNM14 - Straight Code JNM22 - 45 Degree Code JNM24 - 45 Degree Code JNM32 - 90 Degree Code JNM34 - 90 Degree

Resistance Temperature Detector (RTD) Type

 N/A Code RBF1853NM12 Code RBF1853NM14 Code RBF1853NM22 Code RBF1853NM24 Code RBF1853NM32 Code RBF1853NM34

Tip Length for Resistance Temperature Detector (RTD)

 N/A Code RBF1853NM12 - 1/8 inCode RBF1853NM14 - 1/4 inCode RBF1853NM22 - 1/8 inCode RBF1853NM24 - 1/4 inCode RBF1853NM32 - 1/8 inCode RBF1853NM34 - 1/4 in

Bend Angle for Resistance Temperature Detector (RTD)

 N/A Code RBF1853NM12 - Straight Code RBF1853NM14 - Straight Code RBF1853NM22 - 45 Degree Code RBF1853NM24 - 45 Degree Code RBF1853NM32 - 90 Degree Code RBF1853NM34 - 90 Degree

Note for Other Element Types

 N/A For type E, K, or T thermocouples, replace J in order code with required letter designation.
All RTDs are supplied as 3 wire construction. Replace the 3 in the part number with a 2 for 2 wire construction.

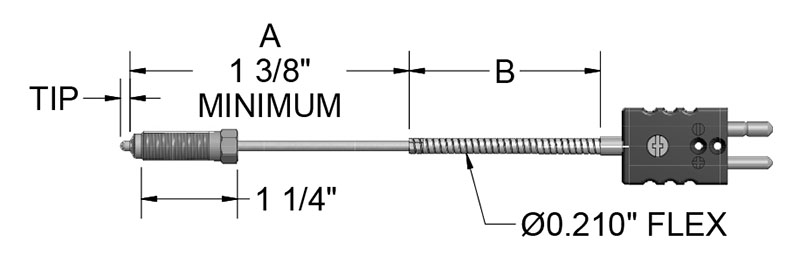

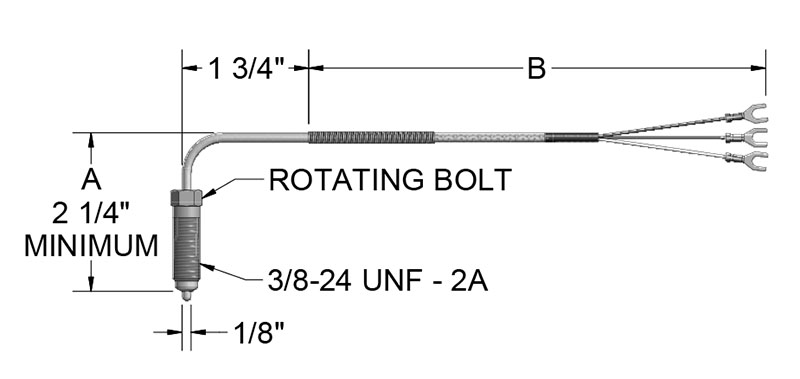

Sheath extension "A"

 N/A Insert 'A' dimension in inches using 2 digits.

Extension Length "B"

 N/A Code 000 - No leadwire, connector attached to Code F1- Fiberglass insulation - solid conductor Code F1A - Fiberglass insulation - solid conductor - flexible armor Code F3 - Fiberglass insulation - stranded conductor Code F3A - Fiberglass insulation - stranded conductor - flexible armor Code F3B - Fiberglass insulation - stranded conductor - stainless steel overbraid

Note for Extension Length "B"

 N/A Insert 3 digit "B" length in inches. EX: F1A012=12" "B" length; for assemblies requiring other than the standard 6" C dimension, insert 3 digit "C" length in inches after "B" dimension. EX: F1A036-012=36" "B" length with additional 1A RTD Type, Tip Length

Terminations

 N/A Code 0 - Leads not stripped Code 2 - 2 in. split leads, 1/4 in. stripped Code 3 - 2 in. split leads with spade lugs Code 4 - Standard plug Code 5 - Standard jack Code 6 - Miniature plug Code 7 - Miniature jack Code 8 - 2 in. split leads with 1/4 in .female disconnects

Options

Options

 N/A BX - Box connector CC - Cable clamp MC - Mating connector
