The multiple-purpose thermocouples listed below are constructed with insulated thermocouple wire and provided with twisted and TIG-welded hot junctions. Insulations and overbraids are offered to satisfy many industrial processes, furnace certification, load checking, and laboratory test temperature measurement applications.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A PL13

Thermocouple Types

 N/A Code ((J,K) 20-1-508 Code ((J,K) 20-1-S-304 Code ((J,K) 20-2-321 Code ((J,K) 20-2-513 Code ((J,K) 20-3-S-317 Code ((J,K) 24-1-304 Code ((J,K) 24-1-508 Code ((J,K) 30-1-305 Code (J,K,E) 20-1-304 Code (J,K,T) 30-2-506 Code (K) 20-2-301 Code (K) 20-2-350 Code (K) 20-2-N-350 Code (K) 20-3-302

Wire Gauge

 N/A Code ((J,K) 20-1-508 - 20 Code ((J,K) 20-1-S-304 - 20 Code ((J,K) 20-2-321 - 20 Code ((J,K) 20-2-513 - 20 Code ((J,K) 20-3-S-317 - 20 Code ((J,K) 24-1-304 - 24 Code ((J,K) 24-1-508 - 24 Code ((J,K) 30-1-305 - 30 Code (J,K,E) 20-1-304 - 20 Code (J,K,T) 30-2-506 - 30 Code (K) 20-2-301 - 20 Code (K) 20-2-350 - 20 Code (K) 20-2-N-350 - 20 Code (K) 20-3-302 - 20

Conductor Type

 N/A Code ((J,K) 20-1-508 - Solid Code ((J,K) 20-1-S-304 - Solid Code ((J,K) 20-2-321 - Solid Code ((J,K) 20-2-513 - Solid Code ((J,K) 20-3-S-317 - Strnd Code ((J,K) 24-1-304 - Solid Code ((J,K) 24-1-508 - Solid Code ((J,K) 30-1-305 - Solid Code (J,K,E) 20-1-304 - Solid Code (J,K,T) 30-2-506 - Solid Code (K) 20-2-301 - Solid Code (K) 20-2-350 - Solid Code (K) 20-2-N-350 - Solid Code (K) 20-3-302 - Strnd
Thermocouple and Insulation Type1 N/A Code ((J,K) 20-1-508 - Tetrafluoroethylene (TFE) Code ((J,K) 20-1-S-304 - Fiberglass/Stainless Steel (SS) ovb. Code ((J,K) 20-2-321 - Hi-temp fiberglass Code ((J,K) 20-2-513 - Polyimide Code ((J,K) 20-3-S-317 - Fiberglass/Stainless Steel (SS) ovb. Code ((J,K) 24-1-304 - Fiberglass Code ((J,K) 24-1-508 - Tetrafluoroethylene (TFE) Code ((J,K) 30-1-305 - Fiberglass Code (J,K,E) 20-1-304 - Fiberglass Code (J,K,T) 30-2-506 - Fluorinated Ethylene Propylene (FEP) Code (K) 20-2-301 - Vitreous sil. fiber Code (K) 20-2-350 - Ceramic fiber Code (K) 20-2-N-350 - Ceramic fiber/Inc. ovb. Code (K) 20-3-302 - Fiberglass

Insulation Temperature Rating

 N/A (Code J,K,E) 20-1-304 - 482 ºCCode (J,K) 20-1-508 - 260 ºCCode (J,K) 20-1-S-304 - 482 ºCCode (J,K) 20-2-321 - 704 ºCCode (J,K) 20-2-513 - 316 ºCCode (J,K) 20-3-S-317 - 482 ºCCode (J,K) 24-1-304 - 482 ºCCode (J,K) 24-1-508 - 260 ºCCode (J,K) 30-1-305 - 482 ºCCode (J,K,T) 30-2-506 - 204 ºCCode (K) 20-2-301 - 871 ºCCode (K) 20-2-350 - 1204 ºCCode (K) 20-2-N-350 - 1204 ºCCode (K) 20-3-302 - 482 ºCCode (J,K) 20-1-508 - 500 ºFCode (J,K) 20-1-S-304 - 900 ºFCode (J,K) 20-2-321 - 1300 ºFCode (J,K) 20-2-513 - 600 ºFCode (J,K) 20-3-S-317 - 900 ºFCode (J,K) 24-1-304 - 900 ºFCode (J,K) 24-1-508 - 500 ºFCode (J,K) 30-1-305 - 900 ºFCode (J,K,E) 20-1-304 - 900 ºFCode (J,K,T) 30-2-506 - 400 ºFCode (K) 20-2-301 - 1600 ºFCode (K) 20-2-350 - 2200 ºFCode (K) 20-2-N-350 - 2200 ºFCode (K) 20-3-302 - 900 ºF
Limits of Error2 N/A Code (J,K) 20-1-508 - Standard Code (J,K) 20-1-S-304 - Standard Code (J,K) 20-2-321 - Special Code (J,K) 20-2-513 - Special Code (J,K) 20-3-S-317 - Standard Code (J,K) 24-1-304 - Standard Code (J,K) 24-1-508 - Standard Code (J,K) 30-1-305 - Standard Code (J,K,E) 20-1-304 - Standard Code (J,K,T) 30-2-506 - Special Code (K) 20-2-301 - Special Code (K) 20-2-350 - Special Code (K) 20-2-N-350 - Special Code (K) 20-3-302 - Standard

Length

 N/A Insert 3 Digit Length Order Code in Inches.

Terminations

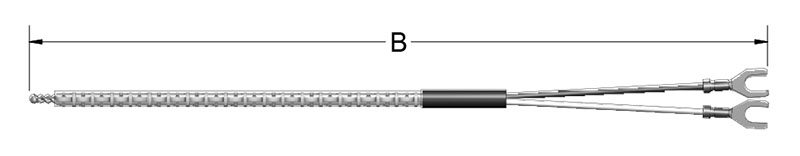

 N/A Code 0 - Leads not stripped Code 2 - 2 in. split leads, 1/4 in. stripped Code 3 - Leads split 2 in. with spade lugs Code 4 - Standard plug Code 6 - Miniature plug

Options

Options

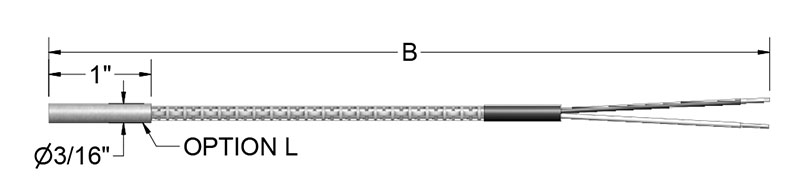

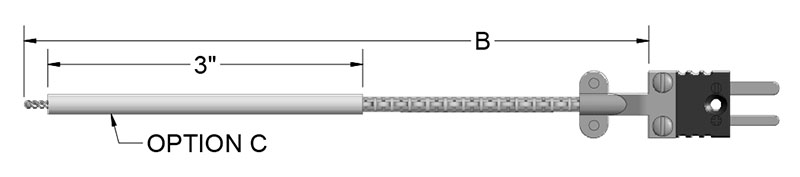

 N/A C - 3" Ceramic insulator at hot junction CC - Cable clamp L - Ungrounded hot junction MC - Mating connector
  • 1 See Wire Section, for additional insulation specifications.
  • 2 Consult factory for availability of non-listed Special Limits of Error wire.
