Brands |
N/A Pyromation® |
Configuration Code |
N/A PL03 |
Thermocouple Design |
N/A Adjustable |
Thermocouple Type |
N/A Code JA - Single Code JJA - Duplex Code KA - Single Code KKA - Duplex |
Calibration Type |
N/A J K |
Note for Other Element Types |
N/A For Type E and T Thermocouples, Replace J in Order Code with Required Letter Designation. |
Bayonet Cap Style |
N/A Code A - 7/16 in. I.D. Single Slot (Standard) Code B - 12 mm I.D. Dual Slot Code C - 12 mm O.D. Dual Pin Code D - Positive seat indicating Code E - 15 mm I.D. Dual Slot |

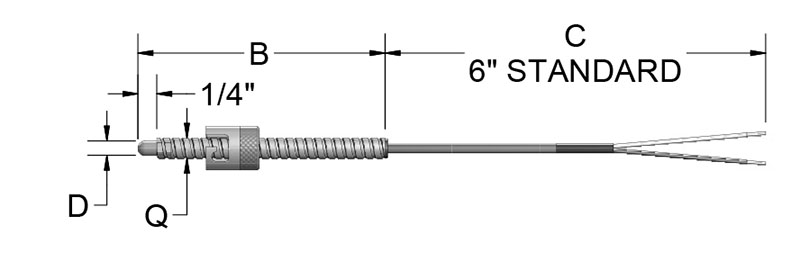

Tip Outer Diameter (OD) (Dimension D) |
N/A Code 2 - 0.125 inCode 3 - 0.188 in |
Flex Outer Diameter (OD) (Dimension Q) |
N/A Code 2 - 0.210 inCode 3 - 0.275 in |
Junction |
N/A Grounded junctions supplied as standard. Insert "U" only when requiring an ungrounded junction. |
Extension Leadwire "B" + "C" |
N/A Code F1A - Fiberglass Insulation - Solid Conductor - Flexible Armor Code F3A - Fiberglass Insulation - Stranded Conductor - Flexible Armor |
Terminations |
N/A Code 0 - Leads not stripped Code 2 - 2 in. split leads, 1/4 in. stripped Code 3 - 2 in. split leads with spade lugs Code 4 - Standard plug Code 5 - Standard jack Code 6 - Miniature plug Code 7 - Miniature jack Code 8 - 2 in. split leads with 1/4 in. female disconnects |
Intended Applications |
N/A Plastics |
