The magnet sensors are designed to measure the surface temperature of ferrous metals with a convenient and non-destructive magnetic attachment. These sensors are designed to be mounted either vertically or horizontally and may be attached to molding press platens, bearing/motor housings and various other metal surfaces. The magnet sensors have a continuous operating temperature of 400 ºF. The T and H series can take intermittent temperatures up to 600 ºF, but the pull of the magnet will be degraded at temperatures above 450 ºF. The M series has a 2 lb. pull force magnet and the T and H series have a nominal 10 lb. pull force magnet.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Thermocouple Types

 N/A Code JMAG :
Description : Type J Magnet Sensor

Code KMAG :
Description : Type K Magnet Sensor

Magnet Assembly Styles

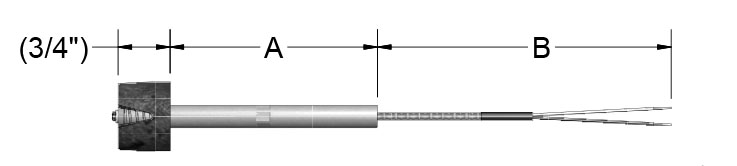

 N/A Sheath Style
Code T :
Description : 10 lb. Pull Magnet with 5/16" O.D. Sheath (3 inch Minimum "A" Dimension)

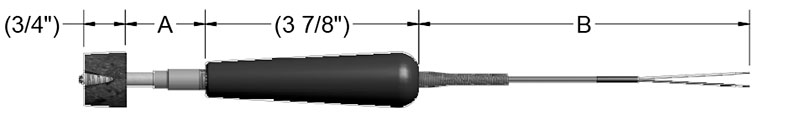

Phenolic Handle Style
Code H :
Description : 10 lb. Pull magnet with Handle (1 inch Minimum "A" Dimension)

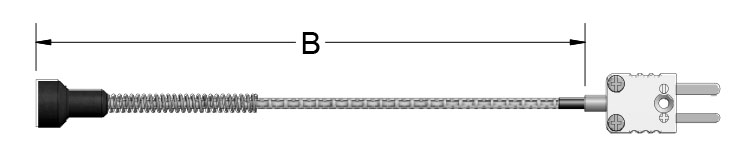

Miniature Style
Code M :
Description : 2 lb. Pull Magnet (No "A" Dimension Required-specify as 000)

"A" Dimension

 N/A Specify 3 Digit "A" Dimension Length in Inches.
Bend Options1 N/A Code 00 :
Description : No Bend

Code 2__ :
Description : Sheath Bent 45º

Code 3__ :
Description : Sheath Bent 90º

Extension Leadwire Type

 N/A Code F1 :
Description : Fiberglass Insulation-Solid Conductor

Code F1B :
Description : Fiberglass Insulation-Solid Conductor-Stainless Steel Overbraid

Code F1A :
Description : Fiberglass Insulation-Solid Conductor-Flexible Armor (Not Available with M1 Series Assembly)

Code F3 :
Description : Fiberglass Insulation-Stranded Conductor

Code F3B :
Description : Fiberglass Insulation-Stranded Conductor-Stainless Steel Overbraid

Code F3A :
Description : Fiberglass Insulation-Stranded Conductor-Flexible Armor (Not Available with M1 Series Assembly)

Code T1 :
Description : Fluoropolymer Insulation-Solid Conductor

Code T1B :
Description : Fluoropolymer Insulation-Solid Conductor-Stainless Steel Overbraid

Code T1A :
Description : Fluoropolymer Insulation-Solid Conductor-Flexible armor (Not Available with M1 Series Assembly)

Code T3 :
Description : Fluoropolymer Insulation-Stranded Conductor

Code T3B :
Description : Fluoropolymer Insulation-Stranded Conductor-Stainless Steel Overbraid

Code T3A :
Description : Fluoropolymer Insulation-Stranded Conductor-Flexible Armor (Not Available with M1 Series Assembly)

Terminations and Options

 N/A Code 0 :
Description : Leads Not Stripped

Code 2 :
Description : 2 in. Split Leads, 1/4 in. Stripped

Code 3 :
Description : 2 in. Split Leads with Spade Lugs

Code 4 :
Description : Standard Plug

Code 5 :
Description : Standard Jack

Code 6 :
Description : Miniature Plug

Code 7 :
Description : Miniature Jack

Code 8 :
Description : 2 in. Split Leads with 1/4 in. Quick-Disconnect Female Terminal Lugs

Code MC :
Description : Mating Connector

Code CC :
Description : Connector Secured to Leads with Cable Clamp

Code BX :
Description : 1/2 in. NPT Junction Box Connector
  • 1 Only available with "T" style magnet sensor. Requires a minimum "A" dimension of 4 3/4 inches.
