Brands |
N/A Pyromation® |
Configuration Code |
N/A SP03 |
100 Ohms Platinum Resistance Temperature Detector (RTD) Elements (α = 0.003 85 ºC-1) |
N/A
Code R1T185L - Single Tolerance - Grade B Temperature Range: -200 to 200 ºC Code R5T185L - Single Tolerance - (1/5) Class B Temperature Range: -30 to 150 ºC Code RBF185L - Single Tolerance - Class B Temperature Range: -50 to 200 ºC Code RAF185L - Single Tolerance - Class A Temperature Range: -30 to 200 ºC Code RBF185M - Single Tolerance - Class B Temperature Range: -50 to 482 ºC Code R1T185H - Single Tolerance - Grade B Temperature Range: -200 to 600 ºC Code RAT185H - Single Tolerance - Class A Temperature Range: -100 to 450 ºC Code R1T285L - Duplex Tolerance - Grade B Temperature Range: -200 to 200 ºC Code R5T285L - Duplex Tolerance - (1/5) Class B Temperature Range: -30 to 150 ºC Code RBF285L - Duplex Tolerance - Class B Temperature Range: -50 to 200 ºC Code RAF285L - Duplex Tolerance - Class A Temperature Range: -30 to 200 ºC Code RBF185M - Duplex Tolerance - Class B Temperature Range: -50 to 482 ºC Code R1T285H - Duplex Tolerance - Grade B Temperature Range: -200 to 600 ºC Code RAT285H - Duplex Tolerance - Class A Temperature Range: -100 to 450 ºC |
Sheath Diameter (316 Stainless Steel) |
N/A
Code 48 - 1/4 in. Code 68 - 3/8 in. |
Element Connection |
N/A
Code 2 - 2-Wire Element Code 3 - 3-Wire Element Code 4 - 4-Wire Element (Not available with 440 Series Transmitter) |

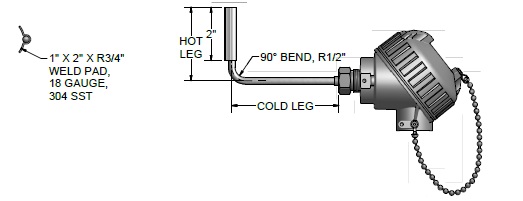

| Sheath Length1 |
N/A
Code 0304 Hot Leg - 3 in. Cold Leg - 4 in. Code 0306 Hot Leg - 3 in. Cold Leg - 6 in. Code 0308 Hot Leg - 3 in. Cold Leg - 8 in. |
Mounting Pad Material |
N/A 304 Stainless Steel |
Mounting Pad Width |
N/A 1 in |
Mounting Pad Length |
N/A 2 in |
Mounting Pad Thickness |
N/A 18 gauge |
Radius of Mounting Pad |
N/A
Code 18RD Radius - 3/4 in. NPT Pipe Size - 1-1/2 in. |
Note for Mounting Pads |
N/A Mounting pad is flexible enough to be formed around pipe sizes from 1" to 12" NPS pipe. |
Standard Head Terminations |
N/A
Code 31 - Aluminum Screw-Cover Head Code 34 - Cast Iron Screw-Cover Head Code 35T-642A - (4 to 20) mA HART® Field Transmitter with Aluminum General-Purpose Housing Code 36T82-D10 - (4 to 20) mA Dual Input HART® Transmitter with Digital Display and General-Purpose Aluminum Housing with Glass Lid Code 37T-662A - (4 to 20) mA HART® Field Transmitter with General-Purpose Aluminum Housing Code 49 - Flip-Top Aluminum Head Code 63 - White Polypropylene Screw-Cover Head Code 91 - 316L Stainless Steel Screw-Cover Head Code 93 - Aluminum Explosion-Proof/Flame-Proof Head, NEX, IEC, ATEX Approved Code 94 - 316L Stainless Steel Explosion-Proof/Flameproof Head, NEC, IEC, ATEX Approved |
Standard Head Options |
N/A
Code CG - Nylon Cord Grip Code GS - Ground Screw Code I - Stainless Steel Tag Code NB - 1/2 in. NPT Nylon Conduit Reducer Bushing Code SB - 1/2 in. NPT Conduit Reducer Bushing Code T-440 - 4 to 20 mA Head-mounted RTD Transmitter Code T-441 - 4 to 20 mA Isolated Head-mounted Transmitter Code T-442 - 4 to 20 mA HART® Isolated Head-mounted Transmitter Code T82-00 - 4 to 20 mA Dual Input HART® Head-mounted Transmitter |
