Brands |
N/A Pyromation® |
Configuration Code |
N/A SP02 |
Tolerance |
N/A Code R1T185L - Grade B Code R1T285L - Grade B Code R5T185L - (1/5) Class B Code R5T285L - (1/5) Class B Code RAF185L - Class A Code RAF285L - Class A Code RBF185L - Class B Code RBF285L - Class B |
Sheath Outer Diameter |
N/A Code (236)8 - 6 mm inCode 38 - 3/16 in. inCode 48 - 1/4 in. in |
Sheath Materials |
N/A 316 Stainless Steel |
Element Connection |
N/A Code 2T - 2 Wire Code 3T - 3 Wire Code 4T - 4 Wire |
Temperature Range |
N/A Code R1T185L: -200 to 200 ºCCode R1T285L: -200 to 200 ºCCode R5T185L: -200 to 200 ºCCode R5T285L: -200 to 200 ºCCode RAF185L: -50 to 200 ºCCode RAF285L: -50 to 200 ºCCode RBF185L: -50 to 200 ºCCode RBF285L: -50 to 200 ºC |
Note for 100 O Platinum RTD a = 0.003 85 ºc-1Tolerance[1] Class B |
N/A Refer to RTD tolerance information in the General Information section for calculations to determine specific tolerance at temperature. |

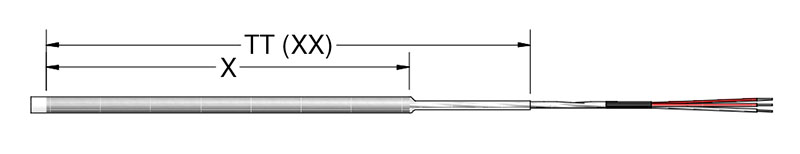

Sheath "X" Dimension |
N/A Insert 3 Digit Sheath Length (X dimension) in Inches. |
Sheath Mountings |
N/A Code 00 - No fitting |
Re-Adjustable Compression Fittings |
N/A Code 10A - 303 Stainless Steel (SS) Code 10B - 303 Stainless Steel (SS) Code 10C - 303 Stainless Steel (SS) Code 56B - Fluorinated Ethylene Propylene (FEP) Code 56C - Fluorinated Ethylene Propylene (FEP) |
National Pipe Thread (NPT) Size (Re-Adjustable Compression Fittings) |
N/A Code 10A - 1/8 Code 10B - 1/4 Code 10C - 1/2 Code 56B - 1/4 Code 56C - 1/2 |
Available Sheath Diameters (Re-Adjustable Compression Fittings) |
N/A Code 10A - 3/16 inCode 10B - 1/4 inCode 10C - 1/4 inCode 56B - 1/4 inCode 56C - 1/4 in |
Head Terminations |
N/A Code 56CF63 (Not available with 3/16 in. O.D. sheath) - White polypropylene screw-cover head with FEP compression fitting holding head to sheath Code 8HN63 - White polypropylene screw-cover head with 1/2 in. National Pipe Thread (NPT) stainless steel hex mounting fitting Code 9HP63 - White polypropylene screw-cover head with 1/2 in. National Pipe Thread (NPT) bushing holding head to sheath |
Sheath Terminations |
N/A Code 4 - Standard plug Code 5 - Standard jack |
Leadwire Transitions for Head Terminations |
N/A Code 15 - Extension leadwire transition with relief spring Code 16 - Extension leadwire transition with heat-shrink tubing Code TT - Fluorinated Ethylene Propylene (FEP) coating: both sheath and leads (specify total length of Foam Polyethylene (FPE) coating) Example: TT(36) |
Extension Leadwire |
N/A Code T1 - Fluoropolymer insulation - solid conductor (available thermocouples only) Code T3 - Fluoropolymer insulation - stranded conductor |
Leadwire Terminations |
N/A Code 0 - No termination Code 2 - 2 in. split leads, 1/4 in. stripped Code 3 - 2 in. split leads with spade lugs Code 4 - Standard plug Code 6 - Miniature plug |
Pt100 (α = 0.003 85 ºC-1) Resistance Temperature Detector (RTD) Assemblies |
N/A Code R1T185L - Simplex Code R1T285L - Duplex Code R5T185L - Simplex Code R5T285L - Duplex Code RAF185L - Simplex Code RAF285L - Duplex Code RBF185L - Simplex Code RBF285L - Duplex |
