Insertion RTD probes are used to monitor internal temperatures of meat, fish, poultry, dough, and other food products, both fresh and slightly frozen varieties. Other uses include penetration of soft process materials such as rubber and plastic compounds. The materials of construction are all FDA compliant for use in sanitary applications. The sheaths are made of full hard-drawn 304SS, hypodermic tubing with a sharp needle-point insertion tip. Several varieties of handles, leadwire, and termination configurations are available. All assemblies are 3-wire construction and use a 100 ohm platinum element with a Temperature Coefficient of 0.003 85 ºC-1 (Class B) and are rated to 200 ºC (392 ºF) maximum temperature limit.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A FD08

Extension Leadwire

 N/A Code M3 - Fluoropolymer Insulation - stranded conductor - stainless steel overbraid Fluorinated ethylene propylene or (FEP) Insulation (Insert 3 digit "B" dimension in inches.) - Temperature Rating 200 °C (392 °F) Code S3 - Fluoropolymer Insulation - stranded conductor - silicon rubber jacket (Insert 3 digit "B" dimension in inches.) - Temperature Rating 200 °C (392 °F) Code T3 - Fluoropolymer Insulation - stranded conductor (Insert 3 digit "B" dimension in inches.) - Temperature Rating 200 °C (392 °F) Code T3A - Fluoropolymer Insulation - stranded conductor - flexible armor (Insert 3 digit "B" dimension in inches.) - Temperature Rating 200 °C (392 °F) Code T3P - Fluoropolymer Insulation - stranded conductor - flexible armor - Polyvinyl Chloride (PVC)-coated (Insert 3 digit "B" dimension in inches.) - Temperature Rating 105 °C (221 °F) Code T3T - Fluoropolymer Insulation - stranded conductor - flexible armor - Fluorinated ethylene propylene or (FEP) coated (Insert 3 digit "B" dimension in inches.) - Temperature Rating 200 °C (392 °F)

Note for Extension Leadwire

 N/A Insert 3 digit "B" dimension in inches.

Termination

 N/A Code 2 - 2" Split leads, 1/4" stripped Code 3 - 2" Split leads with spade lugs Code 4 - Standard Plug Code 6 - Miniature Plug

Sheath 'X' Dimension

 N/A Specify "X" length in inches using 2 digits plus any fractional length. Examples: 02 = 2", 02(1/2)" = 2.5", 12" max. standard construction length.

Pt100 (α = 0.003 85 ºC-1) Resistance Temperature Detector (RTD) Assemblies

Pt100 (α = 0.003 85 ºC-1) Resistance Temperature Detector (RTD) Assemblies

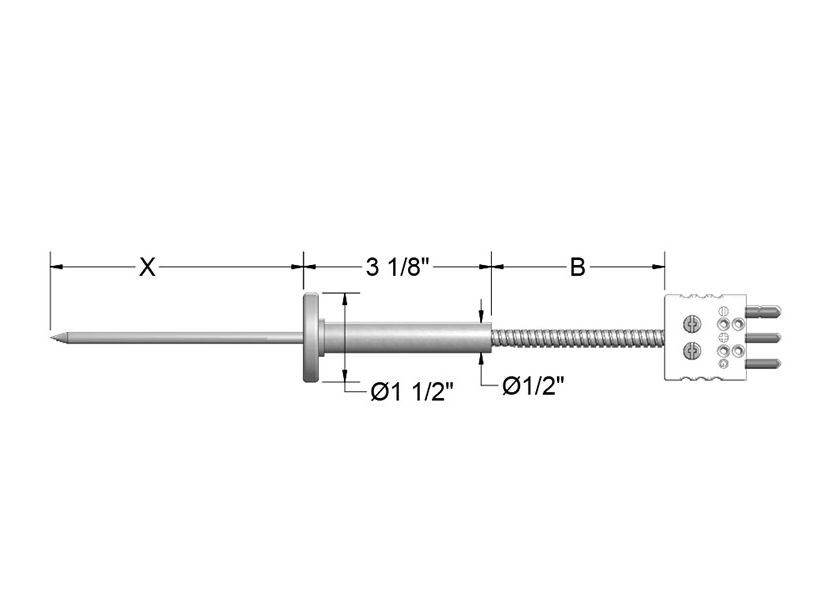

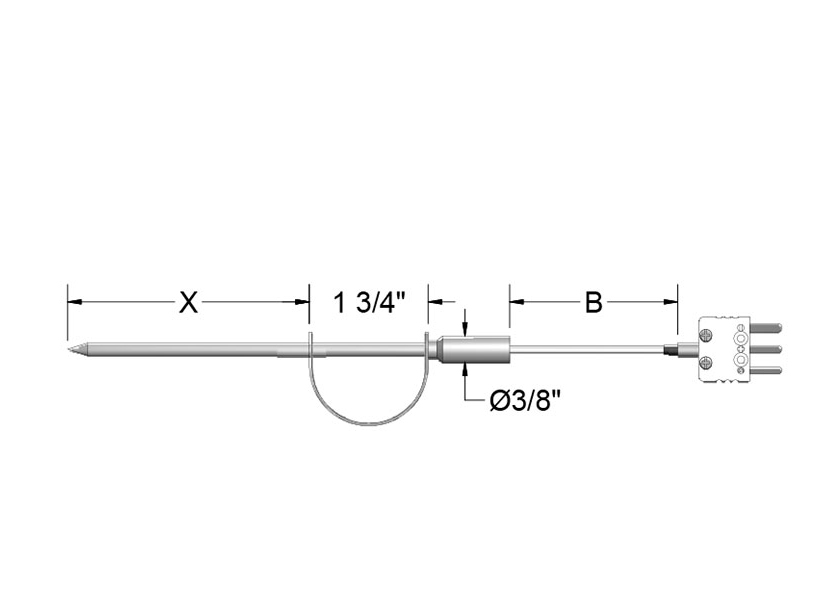

 N/A Code RBF185HD2 (Single), Figure 4 Heavy Duty Handle - Sheath Diameter 0.134 in., 0.180 Code RBF185HD3 (Single), Figure 4 Heavy Duty Handle - Sheath Diameter 0.134 in., 0.180 Code RBF185LH2 (Single), Figure 1 Less Handle - Sheath Diameter 0.134 in., 0.180 in. Code RBF185LH3 (Single), Figure 1 Less Handle - Sheath Diameter 0.134 in., 0.180 Code RBF185MH2 (Single) - Figure 2 Molded Nylon Handle 150 ºc (302 ºF) - Sheath Diameter 0.134 in., 0.180 Code RBF185MH3 (Single), Figure 2 Molded Nylon Handle 150 ºc (302 ºF) - Sheath Diameter 0.134 in., 0.180 Code RBF185SH2 (Single), Figure 3 Sabre Handle - Sheath Diameter 0.134 in., 0.180 Code RBF185SH3 (Single), Figure 3 Sabre Handle - Sheath Diameter 0.134 in., 0.180 Code RBF285HD3 (Duplex), Figure 4 Heavy Duty Handle - Sheath Diameter 0.134 in., 0.180 Code RBF285LH3 (Duplex), Figure 1 Less Handle - Sheath Diameter 0.134 in., 0.180 Code RBF285MH3 (Duplex), Figure 2 Molded Nylon Handle 150 ºc (302 ºF) - Sheath Diameter 0.134 in., 0.180 Code RBF285SH3 (Duplex), Figure 3 Sabre Handle - Sheath Diameter 0.134 in., 0.180

Options

Options

 N/A CG - Cord grip (1/2" National Pipe Thread (NPT) Polyvinyl Chloride (PVC) MC - Mating connector RB - Rubber boot (2 pin plugs only)
