Brands |
N/A Pyromation® |
ATEX Certification1 |
N/A
Code : HL30 Description : ATEX Certified CE Ex II3G Ex ic IIC T4 |
Thermocouple Type |
N/A
Code : Single
|
Case Options |
N/A
Case Style Code : A Description : 0.275 in. O.D. x 0.250 in. Long Case Style Code : B Description : 0.188 in. O.D. x 0.250 in. Long Case Style Code : BS Description : 0.188 in. O.D. x 0.250 in. Long (Includes Spring and Washer) Case Style Code : C Description : 0.125 in. O.D. x 0.300 in. Long (Not Available in Duplex) Case Style Code : D Description : 0.080 in. O.D. x 0.300 in. Long (Not Available in Duplex) Case Material Code : T Description : Tin-Plated Copper Case Material Code : N Description : Nickel-Plated Copper |
Sealing Options |
N/A
Code : 00 Description : No Sealing Option Code : 3P "Y", "U" Description : 3/16 in. O.D. Pass through (Must Specify "Y" Length and "U" Length) Code : 4P "Y", "U" Description : 1/4 in. O.D. Pass through (Must Specify "Y" Length and "U" Length) |

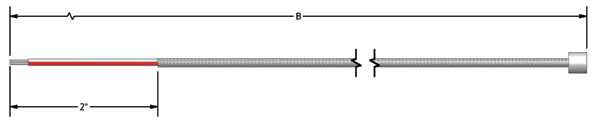

Extension Leadwire Type ("B" Dimension) |
N/A
Code : T1 Description : Polytetrafluoroethylene (PTFE) Insulation - Solid Conductor Available Calibrations Type : E Code : T3J Description : Polytetrafluoroethylene (PTFE) Insulation - Individual Leads - Stranded Conductor Code : T3 Description : Polytetrafluoroethylene (PTFE) Insulation - Stranded Conductor Code : T3B Description : Polytetrafluoroethylene (PTFE) Insulation - Stranded Conductor - Stainless Steel Overbraid Available Calibrations Type : T, E |
Termination |
N/A
Code : 0 Description : No Termination Code : 2 Description : 2 in. Split Leads 1/4 in. Strip Code : 3 Description : 2 in. Split Leads with Spade Lugs |
