Brands |
N/A Pyromation® |
ATEX Certification1 |
N/A
Code : HL30 Description : ATEX Certified CE Ex II3G Ex ic IIC T4 |
Element Connection |
N/A
Code 2 Description : 2-Wire Code 3 Description : 3-Wire |
100 Ω Platinum RTD Elements (-40 to 204 ºC) |
N/A
Sensor Type Code Single : RBF185LBS Code Duplex : RBF285LBS Description Tolerance : ± 0.30 ºC [± 0.12% x R0] Temperature Coefficient : α = 0.003 85 ºC-1 Sensor Type Code Single : RBF192LBS Code Duplex : RBF292LBS Description Tolerance : ± 0.30 ºC [± 0.12% x R0] Temperature Coefficient : α = 0.003 92 ºC-1 |
Case Options |
N/A
Case Style Code : A Description : 0.275 in. O.D. x 0.250 in. Long Case Style Code : B Description : 0.188 in. O.D. x 0.250 in. Long Case Style Code : BS Description : 0.188 in. O.D. x 0.250 in. Long (Includes Spring and Washer) Case Style Code : C Description : 0.125 in. O.D. x 0.300 in. Long (Not Available in Duplex) Case Style Code : D Description : 0.080 in. O.D. x 0.300 in. Long (Not Available in Duplex) Case Material Code : T Description : Tin-Plated Copper Case Material Code : N Description : Nickel-Plated Copper |
Sealing Options |
N/A

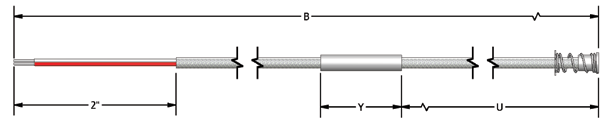

Code : 00 Description : No Sealing Option Code : E "U" Description : Elastomer Fill (Must specify length of elastomer fill "U" dimension) 72 in. maximum fill length. T3BT wire type must be specified. Code : 3P "Y", "U" Description : 3/16 in. O.D. Pass through (Must Specify "Y" Length and "U" Length) Code : 4P "Y", "U" Description : 1/4 in. O.D. Pass through (Must Specify "Y" Length and "U" Length) |
Extension Leadwire Type ("B" Dimension) |
N/A
Code : T3J Description : Polytetrafluoroethylene (PTFE) Insulation - Individual Leads - Stranded Conductor Code : T3 Description : Polytetrafluoroethylene (PTFE) Insulation - Stranded Conductor Code : T3B Description : Polytetrafluoroethylene (PTFE) Insulation - Stranded Conductor - Stainless Steel Overbraid Code : T3BT Description : Polytetrafluoroethylene (PTFE) Insulation - Stranded Conductor - Stainless Steel Overbraid - Polytetrafluoroethylene (PTFE) Outer Jacket |
Termination |
N/A
Code : 0 Description : No Termination Code : 2 Description : 2 in. Split Leads 1/4 in. Strip Code : 3 Description : 2 in. Split Leads with Spade Lugs |
