The miniature sensors are designed to measure the critical temperature of equipment such as sleeve bearings, thrust bearings, bearing shoes, and various other bearings where temperature is critical to performance. These types of bearings are generally used in the operation of high-speed rotating equipment such as compressors, generators, and turbines. The sensors are typically imbedded or installed beneath the Babbitt layer of the bearing to monitor the temperature, allowing early warning of the breakdown of the lubricants. This early warning allows preventative maintenance to take place before major problems occur.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A BS01

ATEX Certification

 N/A Code HL30 - ATEX Certified CE Ex II3G Ex ic IIC T4

Note for ATEX Certification

 N/A Selection optional, not required for general-purpose sensors

Sensor Type

 N/A Duplex Single

Element Connection

 N/A Code 2 - 2 wire Code 3 - 3 wire

Case Style

 N/A Code A - 0.275 in. OD x 0.250 in. Long Code B - 0.188 in. OD x 0.250 in. Long Code BS - 0.188 in. OD x 0.250 in. Long (Includes spring and washer) Code C (Not available in duplex) - 0.125 in. OD x 0.300 in. Long Code D (Not available in duplex) - 0.080 in. OD x 0.300 in. Long

Case Material

 N/A Code N - Nickel Plated Copper Code T - Tin Plated Copper

Sealing Options

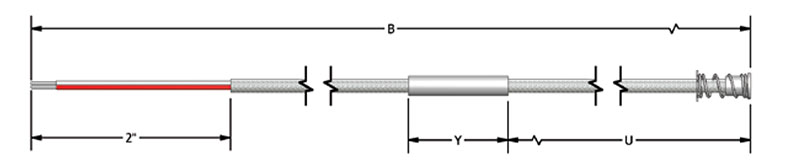

 N/A Code 00 - No sealing option Code 3P "Y", "U" - 3/16 in. OD pass through (Must specify "Y" length and "U" length) Code 4P "Y", "U" - 1/4 in. OD pass through (Must specify "Y" length and "U" length) Code E "U" - Elastomer fill (must specify length of elastomer fill "U" dimension) 72 in. maximum fill length. T3BT wire type must be specified.

Extension Leadwire Type ( "B" Dimension)

 N/A Code T3 - Polytetrafluoroethylene (PTFE) insulation - stranded conductor Code T3B Polytetrafluoroethylene (PTFE) insulation - stranded conductor - stainless steel overbraid Code T3BT -Polytetrafluoroethylene (PTFE) insulation - stranded conductor - stainless steel overbraid -Polytetrafluoroethylene (PTFE) outer jacket Code T3J - Polytetrafluoroethylene (PTFE) insulation - individual leads - stranded conductor

Termination

 N/A Code 0 - No termination Code 2 - 2 in. split leads 1/4 in. strip Code 3 - 2 in. split leads with spade lugs

Application

 N/A Babbitt Bearing Miniature Bearing

100 Ohm (O) Platinum Resistance Temperature Detector (RTD) Elements (-40 to 240 ºC)

Sensor Tolerance

 N/A Code RBF185LBS (Single) - ± 0.30 ºC (± 0.12% x Ro) Code RBF192LBS (Single) - ± 0.30 ºC (± 0.12% x Ro) Code RBF285LBS (Duplex) - ± 0.30 ºC (± 0.12% x Ro) Code RBF292LBS (Duplex) - ± 0.30 ºC (± 0.12% x Ro)
Sensor Temperature Coefficient (α)1 N/A Code RBF185LBS (Single) - 0.003 85 ºC -1 Code RBF192LBS (Single) - 0.003 92 ºC -1 Code RBF285LBS (Duplex) - 0.003 85 ºC -1 Code RBF292LBS (Duplex) - 0.003 92 ºC -1

Case Style A

Number of Wires for Single Sensor Case Style A (T3J)

 N/A 2 3

Wire Size for Single Sensor Case Style A (T3J)

 N/A 24 AWG

Number of Wires for Duplex Sensor Case Style A (T3J)

 N/A 2 3

Wire Size for Duplex Sensor Case Style A (T3J)

 N/A 28 AWG

Number of Wires for Single Sensor Case Style A (T3)

 N/A 2 3

Wire Size for Single Sensor Case Style A (T3)

 N/A 24 AWG

Number of Wires for Duplex Sensor Case Style A (T3)

 N/A 2 3

Wire Size for Duplex Sensor Case Style A (T3)

 N/A 28 AWG

Number of Wires for Single Sensor Case Style A (T3B)

 N/A 2 3

Wire Size for Single Sensor Case Style A (T3B)

 N/A 24 AWG

Number of Wires for Duplex Sensor Case Style A (T3B)

 N/A 2 3

Wire Size for Duplex Sensor Case Style A (T3B)

 N/A 28 AWG

Number of Wire Size for Single Sensor Case Style A (T3BT)

 N/A 2 3

Wire Size for Single Sensor Case Style A (T3BT)

 N/A 24 AWG

Number of Wires for Duplex Sensor Case Style A (T3BT)

 N/A 2 3

Wire Size for Duplex Sensor Case Style A (T3BT)

 N/A 30 AWG

Case Style B

Number of Wires for Single Sensor Case Style B (T3J)

 N/A 2 3

Wire Size for Single Sensor Case Style B (T3J)

 N/A 24 AWG

Number of Wires for Duplex Sensor Case Style B (T3J)

 N/A 2 3

Wire Size for Duplex Sensor Case Style B (T3J)

 N/A 28 AWG

Number of Wires for Single Sensor Case Style B (T3)

 N/A 2 3

Wire Size for Single Sensor Case Style B (T3)

 N/A 24 AWG

Number of Wires for Duplex Sensor Case Style B (T3)

 N/A 2 3

Wire Size for Duplex Sensor Case Style B (T3)

 N/A 28 AWG

Number of Wires for Single Sensor Case Style B (T3B)

 N/A 2 3

Wire Size for Single Sensor Case Style B (T3B)

 N/A 24 AWG

Number of Wires for Duplex Sensor Case Style B (T3B)

 N/A 2 3

Wire Size for Duplex Sensor Case Style B (T3B)

 N/A 28 AWG

Number of Wires for Single Sensor Case Style B (T3BT)

 N/A 2 3

Wire Size for Single Sensor Case Style B (T3BT)

 N/A 24 AWG

Number of Wires for Duplex Sensor Case Style B (T3BT)

 N/A 2 3

Wire Size for Duplex Sensor Case Style B (T3BT)

 N/A 30 AWG

Flange Outer Diameter for Case Style B

 N/A 0.250 in

Flange Length for Case Style B

 N/A 0.030 in

Case Style C

Number of Wires for Single Sensor Case Style C (T3J)

 N/A 2 3

Wire Size for Single Sensor Case Style C (T3J)

 N/A 28 AWG

Number of Wires for Duplex Sensor Case Style C (T3J)

 N/A 2 3

Wire Size for Duplex Sensor Case Style C (T3J)

 N/A 30 AWG

Number of Wires for Single Sensor Case Style C (T3)

 N/A 2 3

Wire Size for Single Sensor Case Style C (T3)

 N/A 28 AWG

Case Style D

Number of Wires for Single Sensor Case Style D (T3J)

 N/A 2 3

Wire Size for Single Sensor Case Style D (T3J)

 N/A 30 AWG

Additional Information

Additional Information

 N/A
  • General purpose and ATEX-certified designs available
  • Supplied in multiple case styles
  • Custom designs on request
  • Rugged construction
  • RTD and Thermocouple Types available
  • Pass throughs, elastomer fill and accessories
  • Standard four day delivery
  • Application proven
  • 1 Refer to RTD tolerance information in the General Information section for calculations to determine specific tolerance at temperature.
