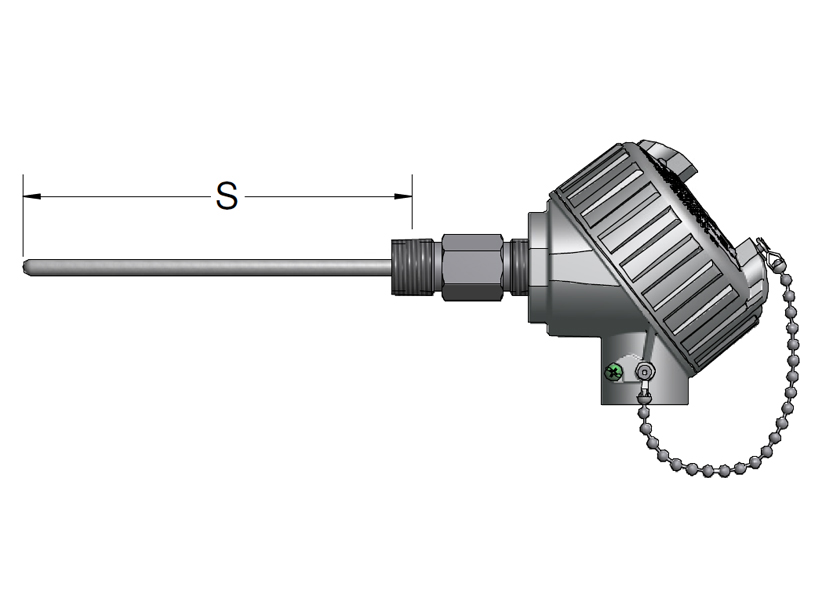

Explosion-Proof, Spring-Loaded RTDs are made for use in U.S. and Canadian hazardous areas. They are designed to extinguish flames inside the device, eliminating the potential for ignition of flammable mixtures in the surrounding atmosphere. CSA certified assemblies, dependent on connection head type, meet XP Class I Division I & II; Groups B, C, D; DIP Class II Division I; Groups E, F, G; Class III; IP66 when installed in a thermowell. Pyromation provides sensors for installation into your existing thermowell or provides the required thermowell as part of the assembly. Refer to the Thermowell Section of this catalog for product selection. The assemblies feature 316 stainless steel sheaths. They are available with aluminum or stainless steel explosion-proof connection heads. Note: The "S" dimension will measure 1/4" longer than specified when the spring is in the relaxed position. The "S" dimension is calculated when the sensor is compressed or in the installed position. This design allows 1/4" spring compression to ensure positive contact with the bottom of the thermowell.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A XP05

Agency Approval

 N/A Code XP - FM/CSA explosion-proof-approved assembly

Sheath Diameter

 N/A Code 48 - 1/4 in

Sheath Materials

 N/A 316 Stainless Steel

Element Connection

 N/A Code 2 - 2-wire Code 3 - 3-wire Code 4 - 4-wire (Not available in duplex or with 440 Series Transmitter)

Element Option

 N/A Code FP - Spring-loaded element with flame path

Head Mounting Fittings

 N/A Code 8HN - 1/2" National Pipe Thread (NPT) flame-path fitting (1-1/2" "E" length) Code 8PU4 (For longer lengths replace "4" with length in inches.) - 1/2" National Pipe Thread (NPT) union/nipple with flame-path fitting (specify "E" length in inches, maximum allowable 9")

Head Mounting Fitting Material

 N/A 316 Stainless Steel

Head Terminations

 N/A 75T142D - (4 to 20) mA HART® Field Transmitter with aluminum explosion-proof housing Code 74 - DIN form B Aluminum Explosion-proof Head Code 76T82-D10 - (4 to 20) mA dual input HART® Field Transmitter with digital display and explosion-proof aluminum housing Code 77T-662C - (4 to 20) mA HART® Field Transmitter with dual cavity explosion-proof aluminum housing Code 93 - Aluminum explosion-proof head Code 94 - 316L stainless steel explosion-proof head

Note for "S" Dimension

 N/A Insert three digit sheath length ("S" Dimension) in inches

Certification

 N/A CSA (Canadian Standards Association) FM Approved

100 Ohm (O) Platinum Resistance Temperature Detector (RTD) Elements (α = 0.003 85 ºC-1)

Tolerance

 N/A Code R1T185H (Single) - Grade B (Tolerance) Code R1T185L (Single) - Grade B (Tolerance) Code R1T285H (Duplex) - Grade B (Tolerance) Code R1T285L (Duplex) - Grade B (Tolerance) Code R5T185L (Single) - (1/5) Class B (Tolerance) Code R5T285L (Duplex) - (1/5) Class B (Tolerance) Code RAF185L (Single) - Class A (Tolerance) Code RAF285L (Duplex) - Class A (Tolerance) Code RAT185H (Single) - Class A (Tolerance) Code RAT285H (Duplex) - Class A (Tolerance) Code RBF185L (Single) - Class B (Tolerance) Code RBF285L (Duplex) - Class B (Tolerance)

Temperature Range

 N/A Code R1T185H (Single) - (-200 to 600) ºCCode R1T185L (Single) - (-200 to 200) ºCCode R1T285H (Duplex) - (-200 to 600) ºCCode R1T285L (Duplex) - (-200 to 200) ºCCode R5T185L (Single) - (-30 to 150) ºCCode R5T285L (Duplex) - (-30 to 150) ºCCode RAF185L (Single) - (-30 to 200) ºCCode RAF285L (Duplex) - (-30 to 200) ºCCode RAT185H (Single) - (-100 to 450) ºCCode RAT285H (Duplex) - (-100 to 450) ºCCode RBF185L (Single) - (-50 to 200) ºCCode RBF285L (Duplex) - (-50 to 200) ºC

Options

Options

 N/A I - Stainless Steel Tag SB - 1/2" National Pipe Thread (NPT) conduit reducer bushing T31(1) - (4 to 20) mA head-mounted transmitter (Not available with option 74) T71 - (4 to 20) mA Isolated Head-Mounted Transmitter T72 - (4 to 20) mA HART® isolated head-mounted transmitter T82-00 - (4 to 20) mA Dual input, isolated HART® head-mounted transmitter

Note

Note

 N/A HART® is a registered trademark of the HART® Communication Foundation.
