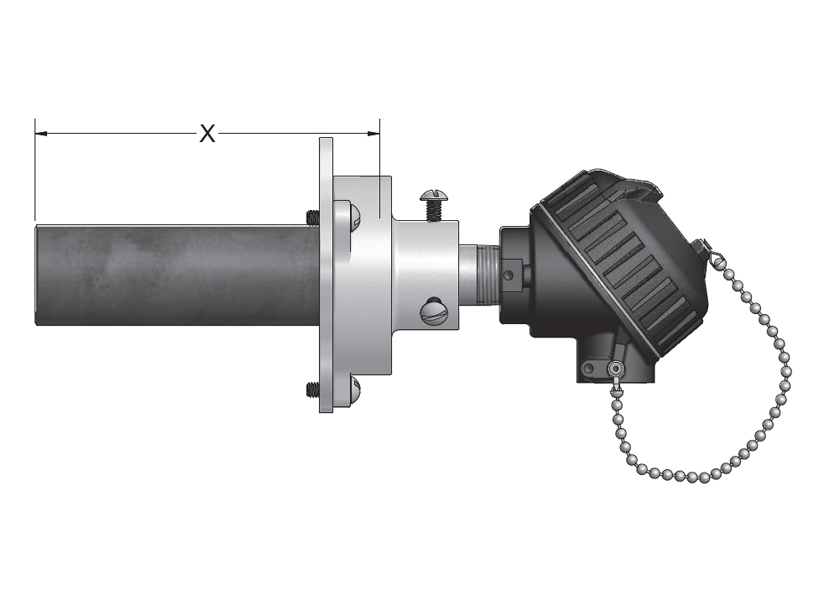

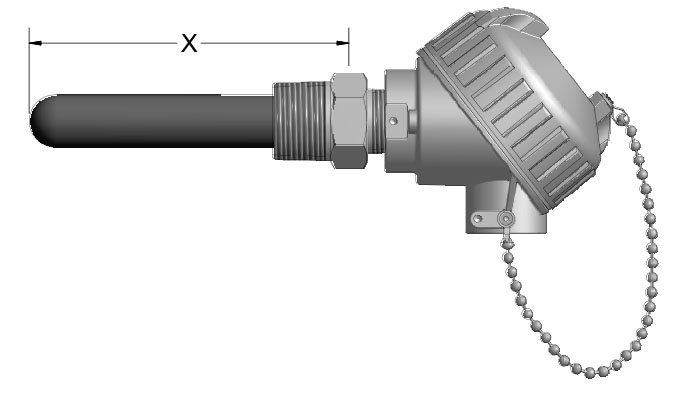

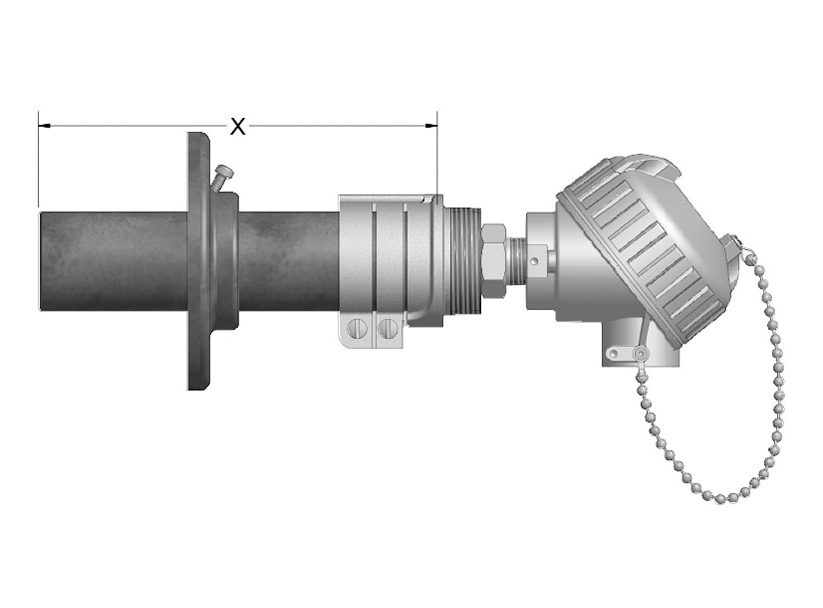

The straight base-metal thermocouple assemblies illustrated on this page are typically used in high temperature and highly corrosive applications commonly found in waste incinerators, cement and lime kilns, utility and waste recovery boilers, and other severe process environments. Special construction designs are also available.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Shank Type

 N/A Tube

Configuration Code

 N/A ID06
Thermocouple Type1 N/A Code K8C - K Code N8C - N

Wire Gauge

 N/A Code K8C - 8 Gauge Ceramic Oval Insulators Code N8C - 8 Gauge Ceramic Oval Insulators

Inner Diameter of Metal Ceramic Tube Material

 N/A Code 12W(E) - 5/8 inCode 12WH - 5/8 in

Outer Diameter of Metal Ceramic Tube Material

 N/A Code 12W(E) - 7/8 inCode 12WH - 7/8 in

Inner Diameter of Silicon-bonded Carbide Tube Material

 N/A Code 18J - 1 inCode 18JC - 1 in

Outer Diameter of Silicon-bonded Carbide Tube Material

 N/A Code 18J - 1-3/4 inCode 18JC - 1-3/4 in

Inner Diameter of Recrystallized Silicon Carbide (RSiC) Tube Material

 N/A Code 71W(E) - 1/2 inCode 71WH - 1/2 in

Outer Diameter of Recrystallized Silicon Carbide (RSiC) Tube Material

 N/A Code 71W(E) - 7/8 inCode 71WH - 7/8 in

Fitting Description

 N/A Code 12W(E) - Steel pipe nipple specify "E" length) Code 12WH - Steel hex fitting Code 18J - Plain tube Code 18JC - Tube with 3 in. O.D. collar Code 71W(E) - Steel pipe nipple specify "E" length) Code 71WH - Steel hex fitting

Metal Ceramic Material Term Thread Size

 N/A Code 12W(E) - 1 inCode 12WH - 3/4 in

Silicate-Bonded Silicon Carbide Material Term Thread Size

 N/A Code 18J - None inCode 18JC - None in

Recrystallized Silicon Carbide (RSiC) Material Term Thread Size

 N/A Code 71W(E) - 1 inCode 71WH - 3/4 in

Metal Ceramic Material Process Threads Size

 N/A Code 12W(E) - 1 inCode 12WH - 1 in

Silicate-Bonded Silicon Carbide Material Process Threads Size

 N/A Code 18J - None inCode 18JC - None in

Recrystallized Silicon Carbide (RSiC) Material Process Threads Size

 N/A Code 71W(E) - 1 inCode 71WH - 1 in

Metal Ceramic (LT-1) Temperature

 N/A 1371 ºC2500 ºF

Silicate-Bonded Silicon Carbide Temperature

 N/A 1649 ºC2500 ºF

Recrystallized Silicon Carbide (RSiC) Temperature

 N/A 1600 ºC

Recrystallized Silicon Carbide (RSiC)

 N/A 2912 ºF

Tube Length

 N/A 12 18 24 30 36 42

Head Terminations

 N/A Code 31 - Aluminum Screw-Cover Head Code 34 - Cast-Iron screw-cover head Code 49 - Flip-Top Aluminum Head Code 91 - 316 stainless steel screw-cover head

Assembly

 N/A Code 8 - 316 stainless steel nipple or hex fitting Code GS - Internal ground screw Code H - Adjustable mounting flange Code HT - Threaded floor flange on nipple Code I - Stainless tag Code NT - Supplied without threads Code SB - 1/2 in. National Pipe Thread (NPT) conduit reducer bushing
  • 1 For duplex assemblies use the T/C type code letter twice. Round insulators will be supplied with 71 series tubes and duplex elements in 12 series tubes. Duplex elements are not available in series 71 tubes.
