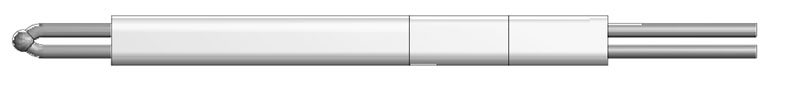

The straight base metal thermocouple elements illustrated on this catalog page are replacement elements for use in Pyromation's complete industrial thermocouple assemblies as found elsewhere in this catalog section. These replacement elements are also compatible for use in other manufacturers' thermocouple assemblies. These thermocouples are available as bare wire or ceramic insulated elements, with options as listed below, and with special construction designs.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A ID01

Single Straight Element Type

 N/A Code J14 - Iron - Constantan Code J20 - Iron - Constantan Code J8 - Iron - Constantan Code K11 - Chromel - Alumel Code K14 - Chromel - Alumel Code K20 - Chromel - Alumel Code K8 - Chromel - Alumel Code N14 - Nicrosil - Nisil Code N8 - Nicrosil - Nisil
Element Insulation1 N/A Code O
Description: Bare Element

Code C: Oval Ceramic
Wire Gauge: 8 Ga. for 0.500 x 0.281 Single Insulator, 11 Ga. for 0.375 x 0.218 Single Insulator, 14 Ga. for 0.313 x 0.188 Single Insulator

Code R Round Ceramic: 8 Ga. for 0.465 O.D. Single Insulator, 0.500 O.D. Duplex Insulator, 11 Ga. for 0.465 O.D. Single Insulator, 0.500 O.D. Duplex Insulator, 14 Ga. for 0.250 O.D. Single Insulator, 0.320 O.D. Duplex Insulator, 20 Ga. for 0.150 O.D. Single Insulator, 0.188 O.D. Duplex Insulator

Type

 N/A Code C - Oval Ceramic Code O - Bare Element Code R - Round Ceramic

Wire Gauge

 N/A Code C - 11 Code C - 14 Code C - 8 Code R - 11 Code R - 14 Code R - 20 Code R - 8

Insulator Dimension

 N/A Code C (Single) - 0.313 x 0.188 Code C (Single) - 0.375 x 0.218 Code C (Single) - 0.500 x 0.281 Code O (Single) - None Used Code R (Duplex) - 0.188 Code R (Duplex) - 0.320 Code R (Duplex) - 0.500 Code R (Single) - 0.150 Code R (Single) - 0.250 Code R (Single) - 0.465
Element "X" Length2 N/A Code 12 inCode 18 inCode 24 inCode 30 inCode 36 in

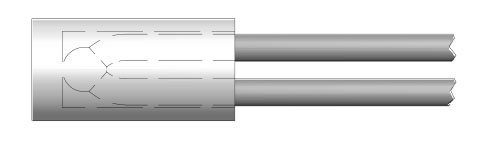

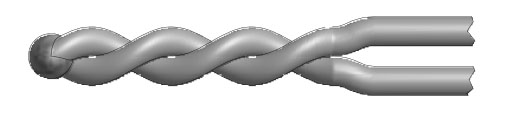

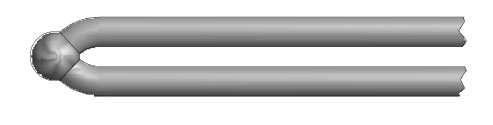

Element Option3 N/A Code 0 - Standard weld as noted below Code 1 - Twist and tag weld (not available with 8 gauge duplex) Code 2 - Tag weld without twist Code L - Insulated hot junction Code 341 - Single terminal block on element Code 342 - Duplex terminal block on element Code 341 - Single terminal block element Code 342 - Duplex terminal block element Code L - Insulated hot junction Code M - Special limits wire - types J and K (consult factory for other types)

Duplex Straight Elements

 N/A Requires the use of 2 single elements.
Use thermocouple type code letter twice. Example: JJ14 or KK11. Dual elements with ceramic insulators are supplied as two single elements.
  • 1 The above insulated elements are supplied with refractory insulators: 1277 °C (2330 °F) maximum temperature.
  • 2 Actual cut length will be 1(1/2)" longer than specified length to allow for terminal connections
  • 3 Unless specified by option numbers above, all 8, 11, and 14 gauge elements will be provided with Opt. 2 (tig weld without twist). 20 gauge elements will be provided with Opt. 1 (twist and tig weld). All elements, regardless of gauge, over 96" will be supplied with Opt. 1 (twist and tig weld).
