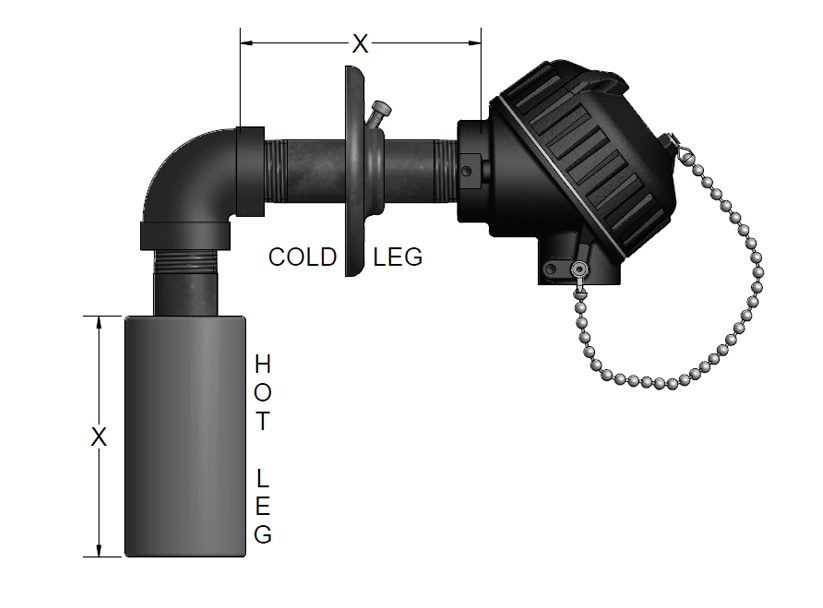

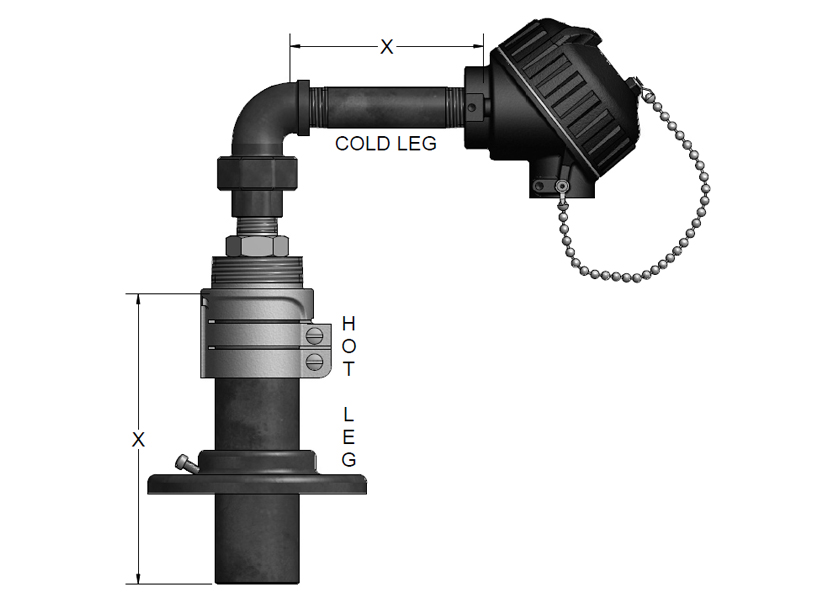

Angle thermocouple assemblies are those commonly used in industrial process heating applications requiring the use of "over-the-side" temperature sensors with special metal alloy, composite material, or silicon carbide protection tubes. Special construction designs are available. Assemblies may be shipped with the hot leg unattached for assembly at time of installation due to size limitations. Cold leg as standard is supplied as carbon steel.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Shank Type

 N/A Tubes

Configuration Code

 N/A ID08

Thermocouple Type and Wire Gauge Size

 N/A K11A K14A K8A N14A N8A

Hot Leg Protection Tube Material

 N/A Code 11 - 75 - Cast-Iron (Not available with 8 gauge or duplex 11 gauge) Code 12WH - Metal Ceramic Code 13 - 75 - Vesuvius Code 14 - 50 (For protection tubes with 316SS pipe instead of a carbon steel pipe, change order number to 148. Example: K8A-148-50-24-31.) - Cerite® II Code 18J - Silicone Carbide

Tube Outer Diameter (O.D)

 N/A Code 11 - 75 (Not available with 8 gauge or duplex 11 gauge) - 1.625 inCode 12WH - 0.875 inCode 13 - 75 - 2.000 inCode 14 - 50 (For protection tubes with 316SS pipe instead of a carbon steel pipe, change order number to 148. Example: K8A-148-50-24-31) - 1/2 inCode 18J - 1.750 in

Hot Leg Length

N/A 12 in18 in24 in30 in36 in

Cold Leg Length

N/A 12 in18 in24 in30 in36 in

Head Terminations

 N/A Code 31 - Aluminum Screw-Cover Head Code 34 - Cast-Iron screw-cover head Code 49 - Flip-Top Aluminum Head Code 91 - 316L Stainless Steel (SS) screw-cover head

Assembly Options

 N/A Code GS - Ground screw Code H - Adjustable steel mounting flange Code HC - Adjustable steel flange (cold leg) Code I - Stainless tag Code L - Insulated hot junction Code SB - 1/2 NPT conduit reducer bushing Code UL - Steel union elbow
