The angle base metal thermocouple elements illustrated on this catalog page are replacement elements for use in Pyromation's complete angle thermocouple assemblies as found elsewhere in this catalog section. These replacement elements are also compatible for use in other manufacturers' angle thermocouple assemblies. These thermocouples are available with the options listed below and with special construction designs. These replacement elements are shipped in a straight configuration and are to be bent at the time of installation.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A ID01
Single Angle Element Type1 N/A Code J14 - Iron - Constantan Code J20 - Iron - Constantan Code J8 - Iron - Constantan Code K11 - Chromel - Alumel Code K14 - Chromel - Alumel Code K20 - Chromel - Alumel Code K8 - Chromel - Alumel Code N14 - Nicrosil - Nisil Code N8 - Nicrosil - Nisil

Duplex Angle Elements

 N/A Requires the use of 2 single elements.

Hot Leg "X" Length

 N/A Code 12 inCode 18 inCode 24 inCode 30 inCode 36 in
Cold Leg "X" Length2 N/A Code 12 Code 18 Code 24 Code 30 Code 36

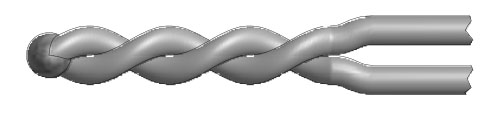

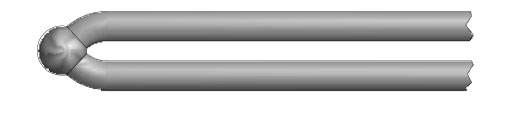

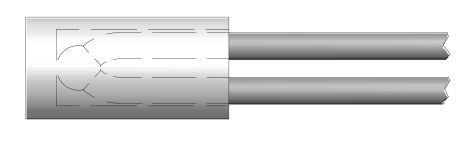

Element Options3 N/A Code 0 - Standard weld as noted below Code 1 - Twist and tig weld Code 2 - Tig weld without twist Code 341 - Single terminal block on element Code 342 - Duplex terminal block on element Code L - Insulated hot junction

Element Insulation

Element Insulation

 N/A Code A - Two hole oval ceramic insulators on hot and cold legs. Ball and socket insulators at bend

Wire Gauge

 N/A Code A - 11 gaugeCode A - 14 gaugeCode A - 8 gauge

Insulator Dimension

 N/A Code A (Single) - 0.375 x 0.218 Code A (Single) - 0.500 x 0.281 Code A (Single) - 0.500 x 0.286

Note for Element Options

 N/A Code M - Special limits wire - types J and K (consult factory for other types)
  • 1 for duplex angle element Requires the use of 2 single elements.
  • 2 Specify other lengths in 1"

    Actual cut length will be 1(1/2)" longer than specified length to allow for terminal connections.
  • 3 Unless specified by option numbers above, all 8, 11, and 14 gauge elements will be provided with Opt. 2 (tig weld without twist).

    All elements, regardless of gauge, over 96" will be supplied with Option 1 (twist and tig weld).
