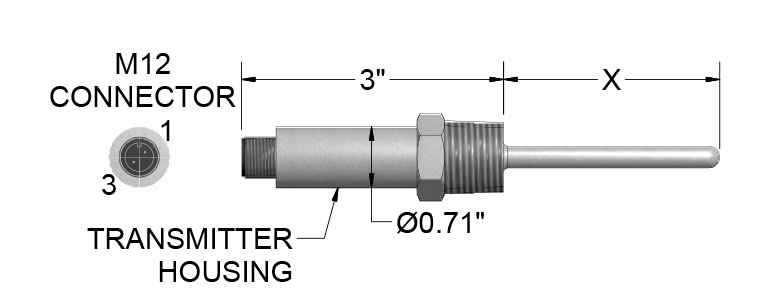

These RTD Assemblies house an optional Series 450 Temperature Transmitter (no connection head is required) that is ideal for monitoring temperature in small areas such as tanks and pipes. The water-tight construction meets the NEMA 6, IP67 Protection Rating requirements. Standard units include a sensor, an M12 process connection housing, and optional transmitter. The transmitter is a 2-wire unit with an analog output. It has measurement input for Pt100 resistance thermometers (RTD) in 4-wire connections. Transmitters can be ranged from (-51 to 160) ºC (-60 to 320) ºF. With a 10 ºC (18 ºF) minimum span requirement. The ambient temperature limits for the M12 connector is (-40 to 85) ºC.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A RT03

Pt100 (α = 0.003 85 ºC-1) Resistance Temperature Detector (RTD) Assemblies

 N/A Code R1T185L - Grade B Tolerance Code R3T185L - Class AA Tolerance Code R5T185L - (1/5) Class B Tolerance Code RAF185L - Class A Tolerance Code RBF185L - Class B Tolerance

Note for Pt100 (α = 0.003 85 ºC-1) Resistance Temperature Detector (RTD) Assemblies

 N/A Refer to RTD tolerance information in the General information section for calcalations to determine specific tolerance at temperature.

Sheath Diameter

 N/A Code 284 - 1/8 inCode 384 - 3/16 inCode 484 - 1/4 in

Sheath Materials

 N/A 316 Stainless Steel

Sheath Fittings

 N/A Code 00 - No Fitting

National Pipe Thread (NPT) Size (Re-Adjustable Compression Fittings)

 N/A Code 12A - Stainless Steel - 1/8 in. Code 12B - Stainless Steel - 1/4 in. Code 12C - Stainless Steel - 1/2 in. Code 19C - Spring-loaded Stainless Steel Well Fitting - 1/2 in.

Sheath Diameter (Re-Adjustable Compression Fittings)

 N/A Code 12A - Stainless Steel - 1/8, 3/16 in. Code 12B - Stainless Steel - 3/16, 1/4 in. Code 12C - Stainless Steel - 1/8, 3/16 in. Code 19C - Spring-loaded Stainless Steel Well Fitting - 3/16, 1/4 in.

Note for Re-Adjustable Compression Fittings

 N/A FEP gland standard 204 ºC [400 ºF] max.

National Pipe Thread (NPT) Size (One-Time Adjustable Compression Fittings)

 N/A Code 05A - Stainless Steel - 1/8 in. Code 05B - Stainless Steel - 1/4 in. Code 05C - Stainless Steel - 1/2 in.

Sheath Diameter (One-Time Adjustable Compression Fittings)

 N/A Code 05A - Stainless Steel - 1/8, 3/16, 1/4 in. Code 05B - Stainless Steel - 1/8, 3/16, 1/4 in. Code 05C - Stainless Steel - 1/8, 3/16, 1/4 in.

Bushing Material

 N/A Code 316 Stainless Steel

Fixed Bushing Mounting National Pipe Thread (NPT) Size

 N/A Code 8A - 1/8 in. Code 8B - 1/4 in. Code 8C - 1/2 in. Code 8D - 3/4 in.

Fixed Bushing Sheath Diameter

 N/A Code 8A - 1/8, 3/16, 1/4 in. Code 8B - 1/8, 3/16, 1/4 in. Code 8C - 1/8, 3/16, 1/4 in. Code 8D - 1/8, 3/16, 1/4 in.

Note for Fixed Bushings

 N/A Option 45 Selection

When ordering fixed bushings, specify order code above plus insertion length "U", as measured from hot tip to bottom of threaded bushing. EXAMPLE: code 8A06 is 1/8" NPT, 316 SS bushing located 6" from hot tip.

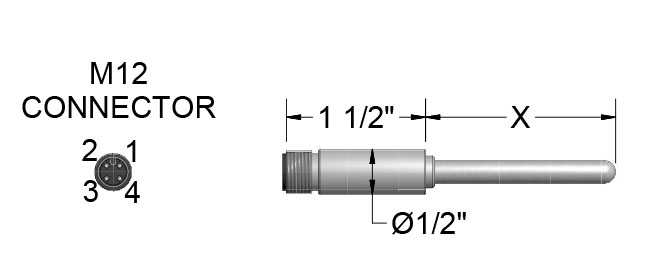

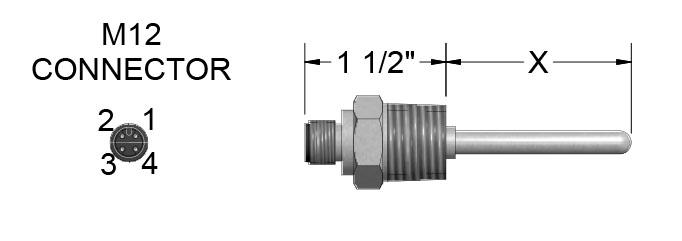

M12 Connector Termination

 N/A Code 45 - No process connection Code B45 - 1/4" National Pipe Thread (NPT) process connection Code C45 - 1/2" National Pipe Thread (NPT) process connection Code D45 - 3/4" National Pipe Thread (NPT) process connection

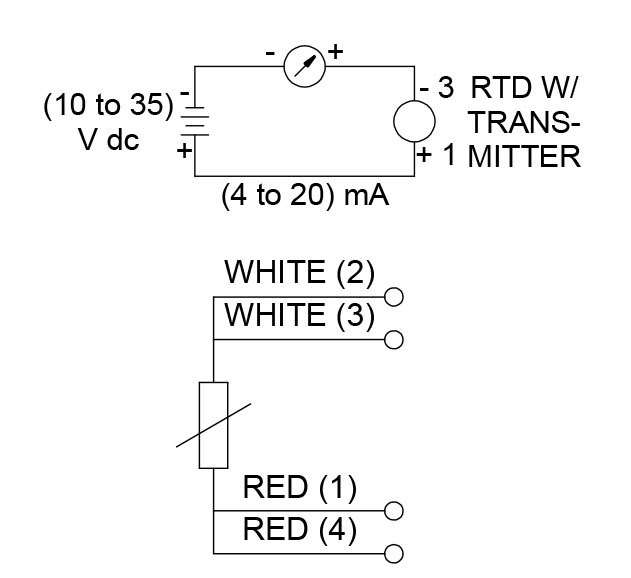

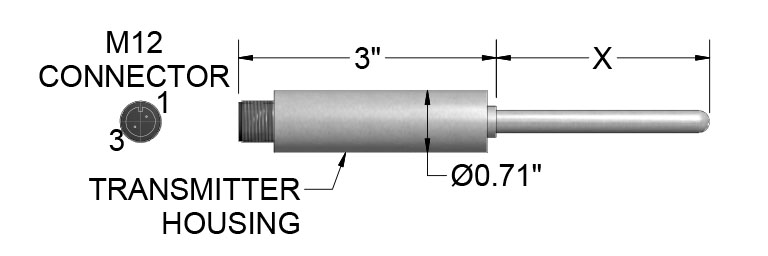

Optional Transmitter

 N/A Code T - 4 to 20 mA Temperature Transmitter (Requires Table selection)

Transmitter

 N/A Code 450 - Programmable transmitter-configured Code 450-00 - Programmable transmitter-unconfigured

Fault Signal

 N/A Code D - Downscale burnout Code U - Upscale burnout

Range

 N/A Code S - (Lower limit - upper limit)

Units

 N/A Code C - Celsius Code F - Fahrenheit

Note for Immersion Length "X"

 N/A Specify "X" length in inches using 2 digits, plus any fractional length desired. Example: 04 = 4", 04(1/2) = 4.5"
