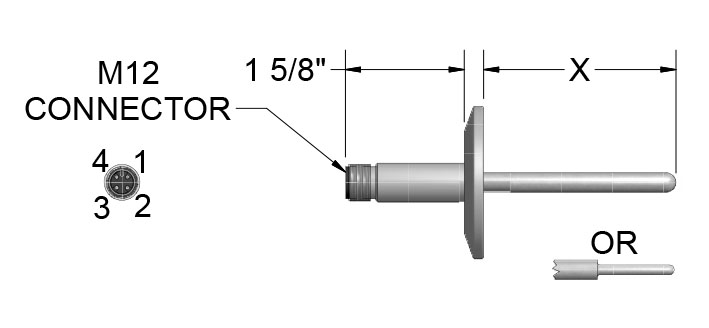

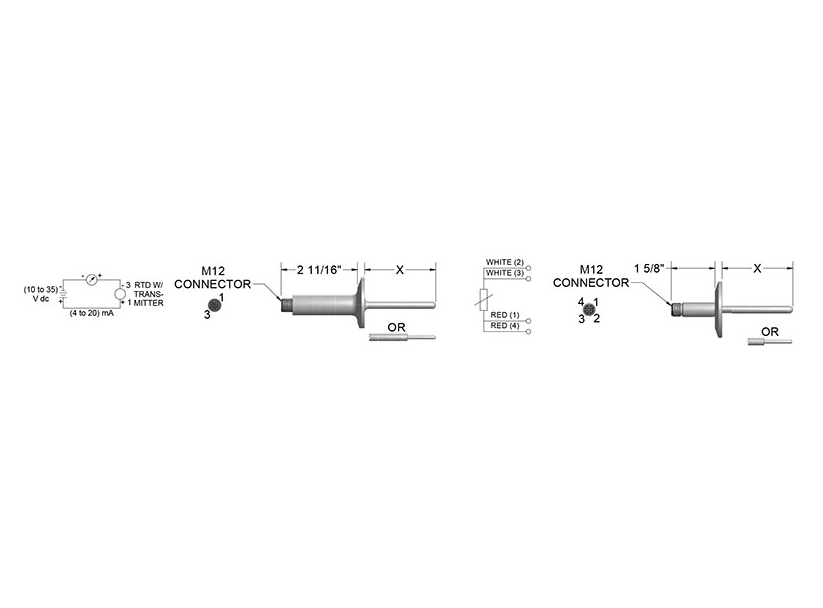

The Water-Tight CIP RTD Assembly houses an optional integral Series 450 Temperature Transmitter (no connection head is required) that is ideal for monitoring temperature in small areas such as tanks and pipes. The water-tight construction meets NEMA 6P requirements. Assemblies are supplied with a surface finish that meets or exceeds 32µin Ra Surface finishes of 15µin Ra or better are available upon request. Standard units include a M12 process connection housing. The transmitter is a 2-wire unit with an analog output. It has measurement input for Pt100 resistance thermometers (RTD) in 4-wire connections. Transmitters can be ranged from (-51 to 160) ºC [-60 to 320] ºF with a 10 ºC [18 ºF] minimum span requirement. Ambient temperature limits for the M12 connector are (-40 to 85) ºC.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A FD01

Note for Immersion Length "X"

 N/A Specify "X" length in inches using 2 digits, plus any fractional length Examples: 04 = 4 in., 04(1/2) = 4.5 in.

For field-wire able and molded extensions see RTD Section.
Sanitary Cap Size and Style 316 Stainless Steel1 N/A Code 1-5 - 1 in. & 1 1/2 in. 16 AMP cap - Tri-Clamp Code 2-5 - 2 in. 16 AMP cap - Tri-Clamp® Code 3-5 - 2 1/2 in. 16 AMP cap - Tri-Clamp® Code 4-5 - 3 in. 16 AMP cap - Tri-Clamp®

Transmitter

 N/A Code 450 - Programmable transmitter configured Code 450-00 - Programmable transmitter unconfigured

Fault Signal

 N/A Code D - Downscale burnout Code U - Upscale burnout

Range

 N/A Code S (0-200) - S (lower limit - upper limit)

Units

 N/A Code C - Celsius Code F - Fahrenheit

Application

 N/A Dairy and Pharmaceutical Food

Standard Tip Pt 100 (α = 0.003 85 ºC-1) Resistance Temperature Detectors (RTD) Assemblies

Tolerance (Standard Tip)2 N/A Code R1T185L484 - Grade B Code R5T185L484 -(1/5) Class B Code RAF185L484 - Class A

Nominal Sheath Outer Diameter (O.D) (Standard Tip)

 N/A Code R1T185L484 - 1/4 inCode R5T185L484 -1/4 inCode RAF185L484 - 1/4 in

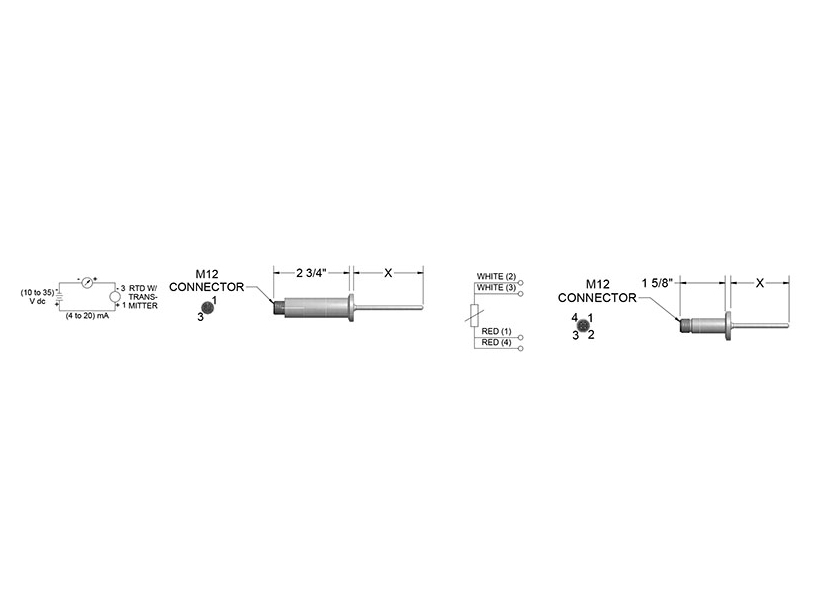

Reduced Tip Pt100 (α = 0.003 85 ºC-1) Resistance Temperature Detectors (RTD) Assemblies

Tolerance (Reduced Tip)3 N/A Code R1T185L68R384 - Grade B Code R1T185L88R484 - Grade B Code R5T185L68R384 - (1/5) Class B Code R5T185L88R484 - (1/5) Class B Code RAF185L68R384 - Class A Code RAF185L88R484 - Class A

Nominal Sheath Outer Diameter (O.D) ((Reduced Tip))

 N/A Code R1T185L68R384 - 3/8 inCode R1T185L88R484 - 1/2 inCode R5T185L68R384 - 3/8 inCode R5T185L88R484 - 1/2 inCode RAF185L68R384 - 3/8 inCode RAF185L88R484 - 1/2 in

Tip Outer Diameter (O.D)

 N/A Code R1T185L68R384 - 3/16 inCode R1T185L88R484 - 1/4 inCode R5T185L68R384 - 3/16 inCode R5T185L88R484 - 1/4 inCode RAF185L68R384 - 3/16 inCode RAF185L88R484 - 1/4 in

Termination

Termination

 N/A Code 45 - M12 Water-tight connector

Optional Transmitter

 N/A Code T - (4 to 20) mA Temperature Transmitter (requires table 5 selection)

Note

Note

 N/A Tri-Clamp® is a registered trademark of Alfa Laval, Inc.
  • 1 Other cap styles available - consult factory
  • 2 Refer to Resistance Temperature Detectors (RTD) tolerance information in the General Information section for calculations to determine specific tolerance at temperature.) Resistance Temperature Detectors (RTD) Reduced Tip Assemblies
  • 3 Refer to Resistance Temperature Detectors (RTD) tolerance information in the General Information section for calculations to determine specific tolerance at temperature.) Resistance Temperature Detectors (RTD) Reduced Tip Assemblies
