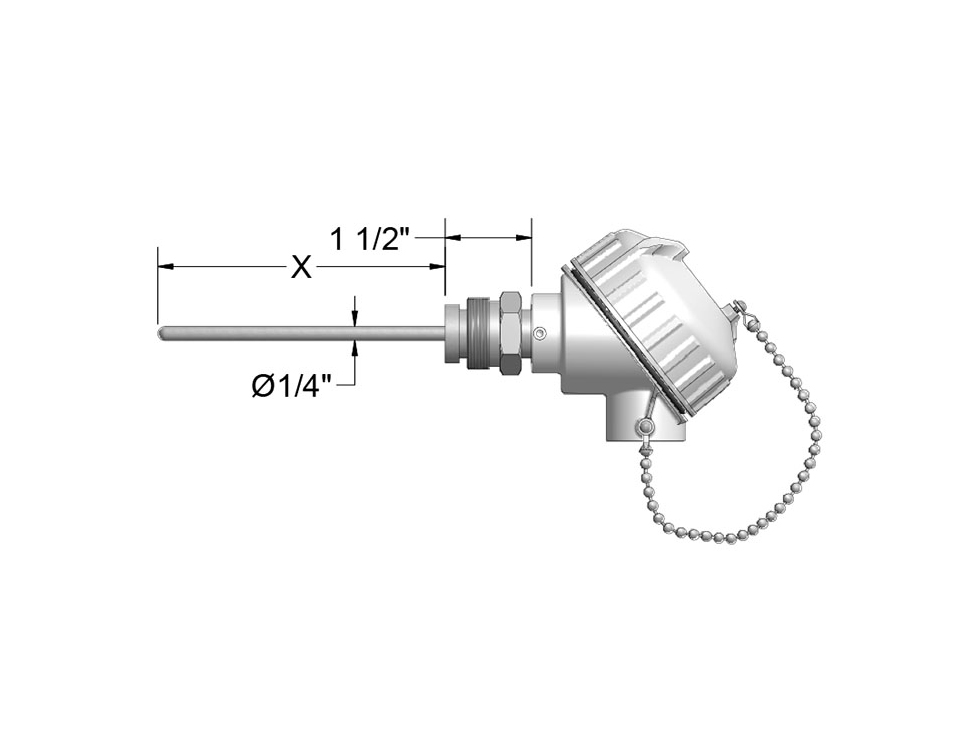

Thermometer replacement RTD temperature sensor assemblies are used when converting instrumentation from older direct reading thermometers to electronic instruments requiring RTD inputs. These RTD assemblies replace the filled system capillary actuating bulbs and will fit into the old existing bulb wells as listed below. These 3-wire constructed sensor assemblies consist of a high-accuracy platinum element sealed inside a spring-loaded 316 stainless steel sheath and are supplied with a white FDA compliant polypropylene connection head. Each sensor is supplied with a free-rotating stainless steel mounting fitting with the appropriate threading for the wells listed below.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A FD05

Element Connection

 N/A 4-Wire Element (Not Available in Duplex) Code 3 - 3-Wire Element

Taylor X Immersion Length

 N/A Code 11 (1/2) - SK10274 Code 12 (1/2) - 26P398 Code 9 (1/2) - 26P397

Anderson X Immersion Length

 N/A Code 11 (1/2) - 41280 Code 12 (1/2) - 41279 Code 9 (1/2) - 41247

Taylor Mounting Fitting Thread

 N/A Code 26P397 - 1 (1/4) -18 UNEF Code 26P398 - 1 (1/4) -18 UNEF Code SK10274 - 1 (1/4) -18 UNEF

Anderson Mounting Fitting Thread

 N/A Code 4121 (1/4) in -18 UNEF Code 41247 - 1 (1/4) in. -18 UNEF Code 41279 - 1 (1/4) in -18 UNEF

Note for Immersion Length "X"

 N/A Specify "X" length in inches using 2 digits, plus any fractional length desired. Examples: 04 = 4", 05(1/2) = 5.5

Head Options

 N/A Code Code HS - Head supplied with wire seal security screw Code Code I - Stainless Steel tags Code Code T-441 - (4 to 20) mA isolated head-mounted transmitter Code Code T-442 - (4 to 20) mA isolated HART® head-mounted transmitter Code Code T82-00 - (4 to 20) mA dual input HART® head-mounted transmitter Code T-440 - (4 to 20) mA head-mounted RTD transmitter

Pt100 (α = 0.003 85 ºC-1) Resistance Temperature Detector (RTD) Assemblies

Pt100 (α = 0.003 85 ºC-1) Resistance Temperature Detector (RTD) Assemblies1 N/A Code Code R1T285L483 (Duplex) - Grade B Tolerance Code Code R3T185L483 (Single) - Class AA Tolerance Code Code R3T285L483 (Duplex) - Class AA Tolerance Code Code R5T185L483 (Single) - (1/5) Class B Tolerance Code Code R5T285L483 (Duplex) - (1/5) Class B Tolerance Code Code RAF185L483 (Single) - Class A Tolerance Code Code RAF285L483 (Duplex) - Class A Tolerance Code R1T185L483 (Single) - Grade B Tolerance

Termination

Termination

 N/A Code 31,W - Aluminum screw-cover head with white epoxy coating Code 35T-642A - (4 to 20) mA HART® Field Transmitter with aluminum general-purpose housing Code 36T82-D10 - (4 to 20) mA dual input HART® transmitter with digital display and general-purpose aluminum housing with glass lid Code 37T-662A - 4 to 20) mA HART® Field Transmitter with general-purpose aluminum housing Code 63 - White polypropylene screw-cover head Code 91 - 316L stainless steel screw-cover head

Note

Note

 N/A Tri-Clamp® is a registered trademark of Alfa Laval, Inc.

HART® is a registered trademark of HART® Communication Foundation.
  • 1 Refer to RTD tolerance information in the General Information section for calculations to determine specific tolerance at temperature.
