The Water-Tight Miniature CIP RTD Assembly houses an optional Series 450 Temperature Transmitter (no connection head is required) that is ideal for monitoring temperature in small areas such as tanks and pipes. The water-tight construction meets NEMA 6P requirements. These assemblies include a 316SS clean-in-place connection. Assemblies are supplied with a surface finish that meets or exceeds 15µin Ra. 3.1 surface finish test reports that list actual finish measurements are available for an adiditional charge. Standard units include a M12 process connection housing. The transmitter is a 2-wire unit with an analog output. It has measurement input for Pt100 resistance thermometers (RTD) in 4 wire connections. Transmitters can be ranged from (-51 to 160) ºC [-60 to 320] ºF minimum span requirement. Ambient temperature limits for the M12 connector is (-40 to 85) ºC.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Configuration Code

 N/A FD01
Tolerance1 N/A R1T185L(156)84 - Grade B R3T185L(156)84 - Class AA R5T185L(156)84 - (1/5) Class B RAF185L(156)84 - Class A

Nominal Sheath Diameter Outer Diameter(O.D)

 N/A R1T185L(156)84 - 5/32 inR3T185L(156)84 - 5/32 inR5T185L(156)84 - 5/32 inRAF185L(156)84 - 5/32 in

Note for Immersion Length "X"

 N/A Specify "X" length in inches using 2 digits, plus any fractional length desired Examples: 04 = 4", 04(1/2) = 4.5"

Sanitary Cap Size and Style 316 Stainless Steel

 N/A Code 075-5 - 1/2" and 3/4" 16 AMP cap - Tri-Clamp®

Termination

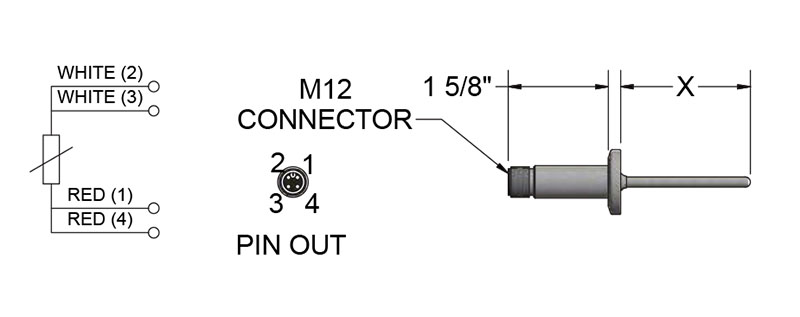

 N/A 45 - M12 Water-tight connector

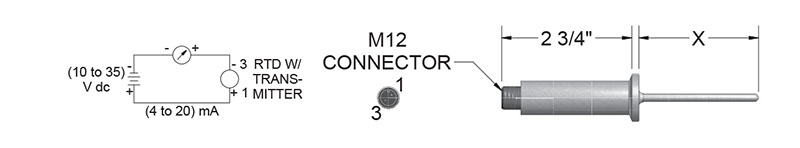

Optional Transmitter2 N/A T - (4 to 20) mA Temperature Transmitter (requires table 5 selection)

Transmitter

 N/A 450 - Programmable transmitter configured 450-00 - Programmable transmitter unconfigured

Fault Signal

 N/A D - Downscale burnout U - Upscale burnout

Range

 N/A S (Lower Limit - Upper Limit)

Units

 N/A C - Celsius F - Fahrenheit

Standards

 N/A 3A-74 Sanitary Standards Canadian and American Underwriter's Laboratories

Application

 N/A Dairy Food Pharmaceutical

Additional Information

Additional Information

 N/A Transmitters can be ranged from (-51 to 160) ºC (-60 to 320) ºF minimum span requirement. Ambient temperature limits for the M12 connector is (-40 to 85) ºC.
  • 1 Refer to Resistance Temperature Detectors (RTD) tolerance information in the General Information section for calculations to determine specific tolerance at temperature
  • 2 Transmitter Section for total sensor and transmitter output accuracy.
