N/A Pyromation® |
Configuration Code |
N/A XP06 |
Agency Approval |
N/A Code HL06 - ATEX/IECEx Flame-Proof Certified Assembly |
Thermocouple Types |
N/A
Code E - Single Code J - Single Code K - Single Code T - Single Code EE - Duplex Code JJ - Duplex Code KK - Duplex Code TT - Duplex Code JJJ - Triplex Code KKK - Triplex |
Sheath Diameter (316 Stainless Steel) |
N/A Code 48 - 1/4 in. |
Measuring Junctions |
N/A Code U - Ungrounded |

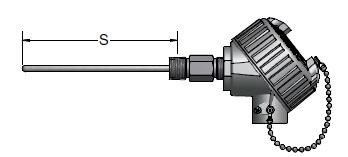

"S" Dimensions |
N/A Insert three digit sheath length ("S" Dimension) in inches |
Element Options |
N/A Code FP - Spring-loaded element with flame path |
Head Mounting 316 Stainless Steel Fittings |
N/A
Code 8HN - 1/2 in. NPT Hex Nipple (1-1/2 in. "E" Length) Code 8XU_(3-1/2" Minimum Length required. Maximum "E" Length is 9") - 1/2 in. NPT Union/Nipple (Specify "E" Length in inches) |
Head Terminations |
N/A
Code 75T142E - 4 to 20 mA HART® Field Transmitter with Aluminum Flame-Proof Housing Code 77T-662E - 4 to 20 mA HART® Field Transmitter with Dual Cavity Aluminum Flame-Proof Housing Code 93 - Aluminum Flame-Proof Head Code 94 - 316L Stainless Steel Flame-Proof Head |
Options |
N/A
Code SB - 1/2 in NPT Conduit Reducer Bushing, Aluminum Code I - Stainless Steel Tag Code M2 - M20x1.5 Conduit Reducer Bushing, Nickel Plated Brass Code M5 - M25x1.5 Conduit Reducer Bushing, Nickel Plated Brass Code T71 - 4 to 20 mA Isolated Head-Mounted Transmitter Code T72 - 4 to 20 mA HART® Isolated Head-Mounted Transmitter Code T82-00 - 4 to 20 mA Dual Input, Isolated HART® Head-Mounted Transmitter |
Note |
N/A
The "S" dimension will measure 1/4" longer than specified when the spring is in the relaxed position. The "S" dimension is calculated when the sensor is compressed or in the installed position. This design allows 1/4" spring compression to ensure positive contact with the bottom of the thermowell. HART® is a registered trademark of the HART® Communication Foundation. |
