Brands |
N/A Pyromation® |
Agency Approval |
N/A Code XP - FM/CSA explosion-proof-approved assembly |
Thermocouple Types |
N/A Code E - Single Code EE - Duplex Code J - Single Code JJ - Duplex Code JJJ - Triplex Code K - Single Code KK - Duplex Code KKK - Triplex Code T - Single Code TT - Duplex |
Sheath Diameters |
N/A Code 2 - 1/8 Code 3 - 3/16 Code 4 - 1/4 Code 6 - 3/8 |
Sheath Materials |
N/A Code 3 - Alloy 600 Code 4 - 310 Stainless steel Code 5 - 446 Stainless steel Code 8 - 316 Stainless steel |
Measuring Junction |
N/A Code U - Ungrounded |

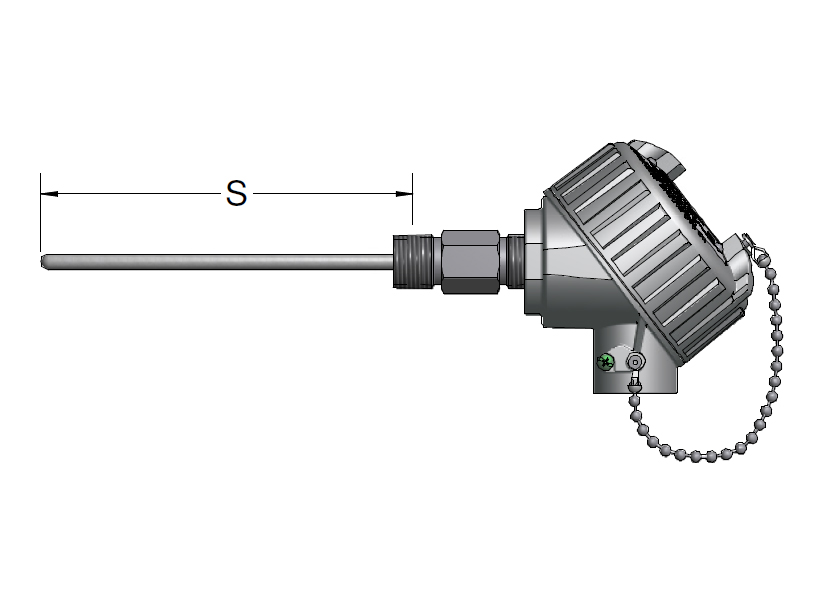

Note for "S" Dimension |
N/A Insert three digit sheath length ("S" Dimension) in inches. |
Head Terminations |
N/A Code 74 - DIN form B Aluminum Explosion-proof Head, Group A Code 75T142B - (4 to 20) mA HART® Field Transmitter with aluminum explosion-proof housing, Group A Code 76T82-D10 - (4 to 20) mA dual input HART® Field Transmitter with digital display and explosion-proof aluminum housing, Group A Code 77T-662C - (4 to 20) mA HART® Field Transmitter with dual cavity explosion-proof aluminum housing, Group A Code 93 - Aluminum explosion-proof head, Group A Code 94 - 316L stainless steel explosion-proof head, Group A |
Note for Element Options |
N/A Code FP - Spring-loaded Element with Flame Path |
Head Mounting Fittings |
N/A Code 6HN - 1/2 in. x 1/2 in. National Pipe Thread (NPT) steel hex nipple Code 8HN - 1/2 in. x 1/2 in. National Pipe Thread (NPT) stainless steel hex nipple Code 8RNDC - 3/4 in. x 1/2 in. National Pipe Thread (NPT) stainless steel hex nipple Code 9HP - 1/2 in. NPT stainless steel bushing (no process threads) |
Options |
N/A Code I - Stainless Steel Tag Code SB - 1/2 in. National Pipe Thread (NPT) Conduit Reducer Bushing Code T71 - (4 to 20) mA Isolated Head-Mounted Transmitter Code T72 - (4 to 20) mA HART® isolated head-mounted transmitter Code T82-00 - (4 to 20) mA Dual input, isolated HART® head-mounted transmitter |
