The General-Purpose, 316L Stainless Steel connection heads are NEMA 4X/IP66 rated for indoor or outdoor use, providing protection against dust, rain, splashing and hose-directed water. When specified the heads are rated through FM/CSA; Non-Incendive Class I, Division II, Groups A, B, C, and D; Class II, Division II, Groups F and G; Class III

The stainless steel heads of fer excellent corrosion- and chemical-resistance. They include a standard graphite material gasket that provides good chemical stability, superior creep resistance and a maximum temperature rating of 825 °F. These heads accept Pyromation 340 series terminal blocks, 400 series transmitters and DIN Form B blocks or transmitters.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Materials

 N/A Stainless Steel

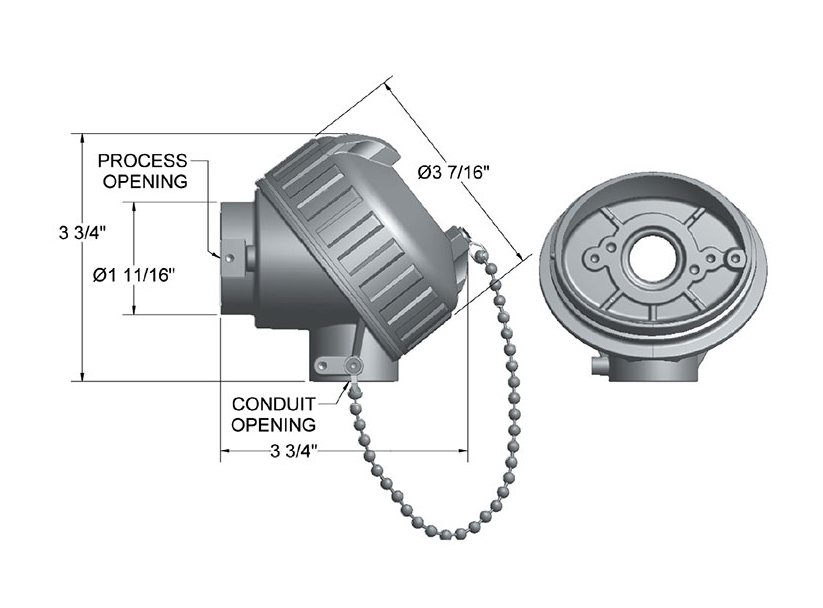

Height

 N/A 3-3/4 in

Width

 N/A 3-3/4 in

Diameter

 N/A 3-7/16 in

Maximum Temperature Rating

 N/A 825 ºF

Certification

 N/A NEMA 4X/IP66

Additional Information

Additional Information

 N/A These general-purpose connection heads are designed and manufactured by Pyromation. The enhanced connection head seriesdesign provides (The connection head series changes are not incorporated in the flip-top aluminum connection head.):

  • Greater internal volume for easier wire termination and storage
  • Elevated terminal block allowing easy access to terminals for attachment of extension wire
  • Conduit stop to prevent damage to interior wiring/block/transmitter during installation
  • Optional ground screw (not available on the polypropylene head) and process set screw positions
  • Easy single-twist cap removal that maintains strong seal when closed
