NEC Explosion-Proof Approvals:
  • FM/CSA: Class I Division 1; Groups A,B,C,D; DIP Class II Division 1; Groups E,F,G; Class III; Type 4/4X
  • CSA Canada: Ex d IIC Gb; Ex tb IIIC Db;IP66
  • CSA U.S.: Class I Zone 1 AEx d IIC Gb; Zone 21 AEx tb IIIC Db; IP66
IEC Flameproof Approvals:

ATEX: Ex II 2GD
Ex db IIC Gb; Ex tb IIIC Db; IP66
IECEx: Ex db IIC Gb; Ex tb IIIC Db; IP66
  • Ta = -20 °C to 100 °C
These connection heads accommodate any of the 340 series or DIN Form B terminal blocks and a variety of transmitters.
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Materials

 N/A Aluminum

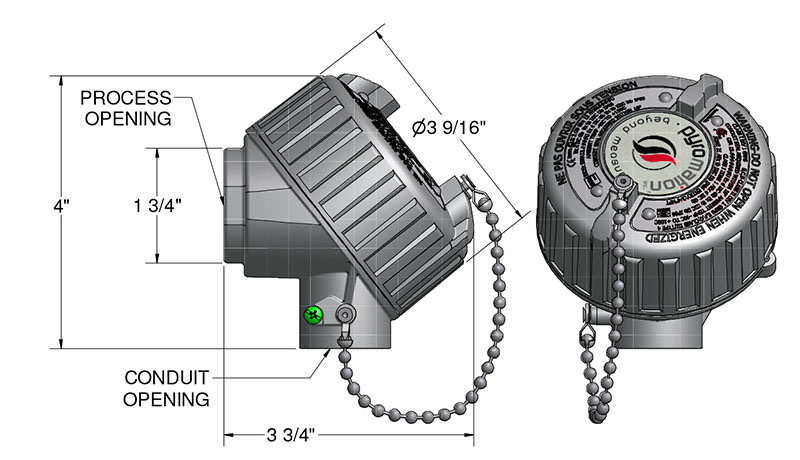

Height

 N/A 4 in

Width

 N/A 3-3/4 in

Diameter

 N/A 3-9/16 in

Additional Information

Additional Information

 N/A These connection heads are designed for use in hazardous locations; places where flammable or explosive conditions exist. The following connection head types meet standards for hazardous locations and, depending on application, can be used as part of explosion-proof (XP)/flameproof (FP) temperature sensor assemblies in most NEC and IEC hazardous locations.
