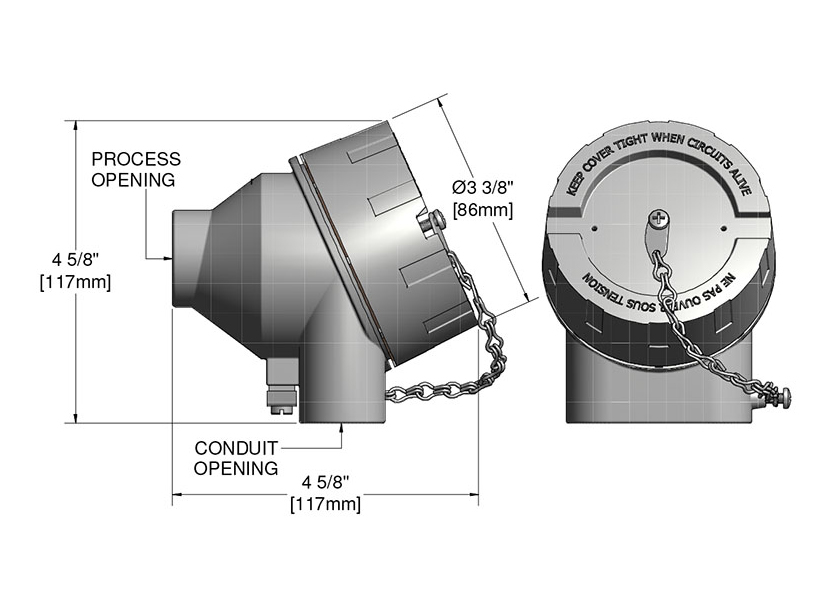

The 215807 is an aluminum DIN Style connection head with a 1/2" NPT process opening and a 3/4" conduit connection. The second conduit opening is built-in for optional dual access.

NEC Explosion-Proof Approvals:
  • FM/CSA: Class I Division 1; Groups A,B,C,D; DIP Class II Division I; Groups E,F,G; Class III; Type 4X
  • CSA: Class I, Zone 1 Ex d II C, IP68
    • IEC Flameproof Approvals: ATEX: II 2GD Ex d IIC Gb, Ext 111C Db,IP68
    IECeX: Ex d II C, IP68
    • Ta = -40 ºC to 100 ºC
Unit of Measure

Specifications

Brands

 N/A Pyromation®

Materials

 N/A Aluminum

Height

 N/A 4-5/8 in

Width

 N/A 3-5/8 in

Diameter

 N/A 3-3/8 in

Additional Information

Additional Information

 N/A These connection heads are designed for use in hazardous locations; places where flammable or explosive conditions exist. The following connection head types meet standards for hazardous locations and, depending on application, can be used as part of explosion-proof (XP)/flameproof (FP) temperature sensor assemblies in most NEC and IEC hazardous locations.
