N/A Pyromation® |
Configuration Code |
N/A BM01 |

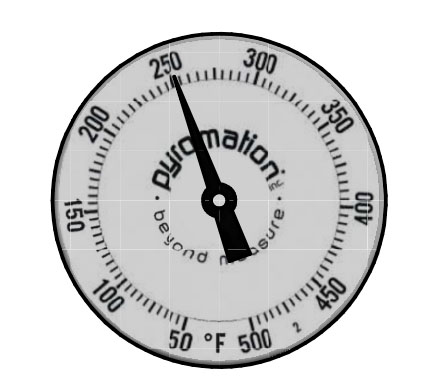

Dial Size |
N/A Code BMI3B - 3 inCode BMI4B - 4 inCode BMI5B - 5 in |

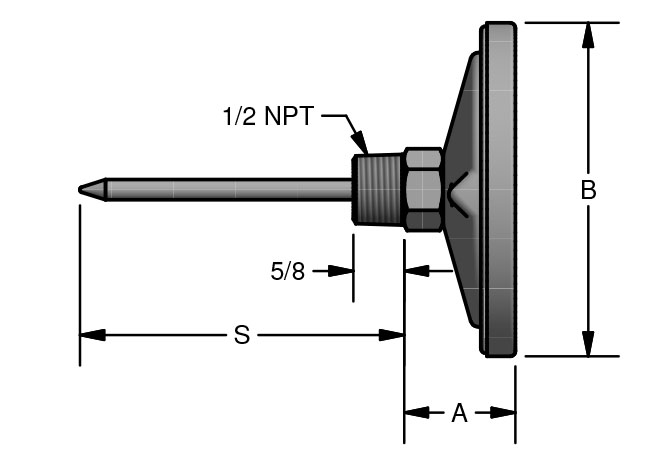

Dimension A |
N/A Code BMI3B - 1.375 inCode BMI4B - 1.375 inCode BMI5B - 1.718 in |
Dimension B |
N/A Code BMI3B - 3.187 inCode BMI4B - 4.115 inCode BMI5B - 5.040 in |
Sheath Diameter |
N/A Code 49 - 0.25 inCode 69 - 0.375 in |
Sheath Materials |
N/A Code 49 - 304 Stainless Steel (42 in. maximum length) Code 69 - 304 Stainless Steel |
Note for Sheath Length |
N/A
Specify 3 digit length in inches 2(1/2) in. minimum length required 120 in. maximum length |
Process Connection Diameter (304 Stainless Steel) |
N/A Code 9HN - 1/2 (in.) National Pipe Thread (NPT) process connection Code 9HP - No process connection Code 9PU - 1/2 (in.) National Pipe Thread (NPT) Union Code 9RH - R 1/2 (in.) British Standard Pipe Thread (BSPT) |
Window Options |
N/A Code AC - Acrylic Code G - Glass (Standard) Code PC - Polycarbonate (up to 135 ºC (300 ºF)) Code SG - Safety Glass Code TG - Tempered Glass (Not available in 4 in. dial) |
Additional Options |
N/A
Code P - Plain Dial (No company name) Code I - Stainless Steel Tag Code SF - Silicon-filled (Only available with Safety Glass or Polycarbonate lens. Silicon filled thermometers are limited for use in process temperatures ranging from (-45 to 260) ºC) Code M1 - Minimum indicator or maximum indicator (Only available in a 3 in. or 5 in. dial size with glass or acrylic lens) Code M2 - Both minimum and maximum indicator (Only available in a 3 in. or 5 in. dial size with glass or acrylic lens) |
Temperature Range |
N/A Code 0020 : -75 to 175 ºCCode 0100 : -50 to 100 ºCCode 0240 : -20 to 120 ºCCode 0330 - 0 to 100 ºCCode 0350 - 0 to 150 ºCCode 0370 - 0 to 200 ºCCode 0380 - 0 to 250 ºCCode 0390 - 0 to 300 ºCCode 0410 - 0 to 450 ºCCode 0500 : -100 to 100 ºFCode 0740 - 0 to 200 ºFCode 0750 - 0 to 220 ºFCode 0760 - 0 to 250 ºFCode 0770 - 0 to 300 ºFCode 0800 - 0 to 500 ºFCode 0840 - 20 to 240 ºFCode 0920 - 50 to 250 ºFCode 1030 - 200 to 1000 ºF |
Dual Temperature Range |
N/A Code 1100 - -40 to 160 ºFCode 1170 - 0 to 220 ºFCode 1180 - 0 to 250 ºFCode 1270 - 50 to 500 ºFCode 1310 - 200 to 1000 ºFCode 1100 - -40 to 70 ºCCode 1170 - -10 to 100 ºCCode 1180 - -20 to 120 ºCCode 1270 - 0 to 250 ºCCode 1310 - 100 to 550 ºC |
Length |
N/A 2.5 in4 in6 in9 in |
Additional Information |
N/A All other sheath diameters and sheath lengths will be supplied with a rounded tip. Standard external component material consists of 304 stainless steel while 316 stainless steel wetted parts are available as an optional selection. The accuracy is ±1% full span per ASME B40.3 Grade A. These Bi-Metal Thermometer (BMI) series units come with a calibration feature, and each is easily calibrated by inserting an allen wrench into the reset opening. |
